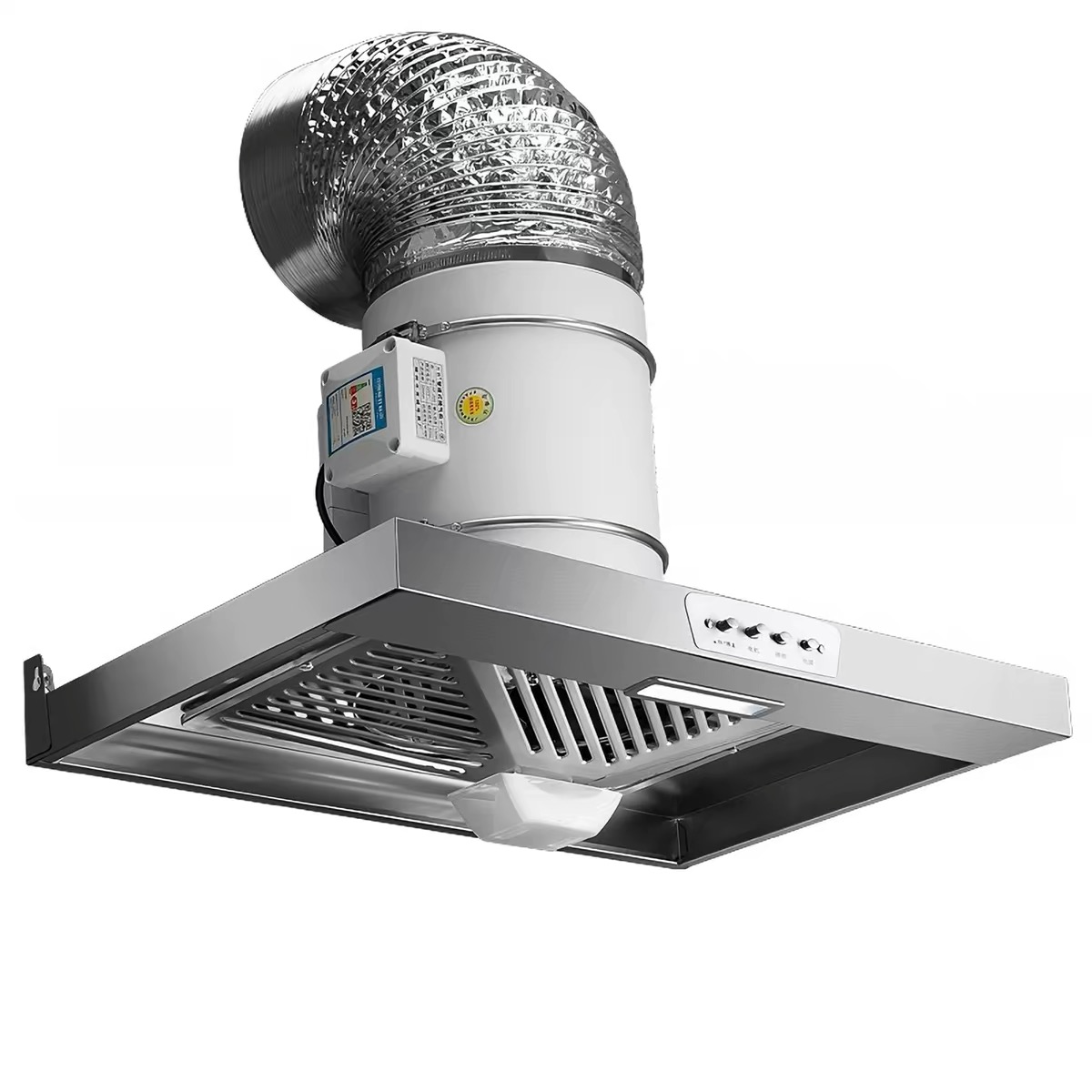

201 Stainless Steel and Mixed Flow Duct Fan(with dual lighting)
Cost-effective kitchen hood fans built from ventilation fan platforms: 201 stainless steel with dual lighting, 150-200 mm, 520-1050 m3/h.
Product Overview
Cost-effective kitchen hood fans built from ventilation fan platforms: 201 stainless steel with dual lighting, 150-200 mm, 520-1050 m3/h.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
| Model | Frequency | Voltage | Watt | Speed | Noise | Air Volume | Height | Hole Size | Height |
|---|---|---|---|---|---|---|---|---|---|
| 150 | 50 | 220 | 46/58 | 2800 | ≤69 | 520/650 | 40*60 | 145 | 210 |
| 200 | 50 | 220 | 95/120 | 2800 | ≤69 | 830/1050 | 40×60 | 195 | 250 |
Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|
| 150 | 43 | 62 | 33 | 1 |
| 200 | 43 | 62 | 33 | 1 |
