Metal Exhaust Fans
All-metal Wall-mounted Exhaust Fan(intake/exhaust)
GY-150 to GY-300 . Optional front grill, rear damper, or mesh cover for flexible installation. Available in 3 standard colors: white/black/ CR stainless steel
Product Overview
GY-150 to GY-300 . Optional front grill, rear damper, or mesh cover for flexible installation.
There are 2 types: one way(exhaust), 2 ways(intake and exhaust)
Available in 3 standard colors: white/black/ CR stainless steel
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
Exhaust fan with base
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | RPM (r/min) | Noise (dB) | Air volume (m3/h) | Hole size (mm) | Height (mm) |
|---|---|---|---|---|---|---|---|---|
| GY-100 | 50 | 220 | 20 | 2800 | ≤69 | 140 | 95 | 72 |
| GY-150 | 50 | 220 | 40 | 2800 | ≤69 | 780 | 143 | 140 |
| GY-180 | 50 | 220 | 50 | 2800 | ≤69 | 980 | 175 | 140 |
| GY-200 | 50 | 220 | 80 | 2800 | ≤69 | 1280 | 195 | 145 |
| GY-250 | 50 | 220 | 100 | 2800 | ≤69 | 2100 | 245 | 155 |
| GY-300 | 50 | 220 | 120 | 2800 | ≤69 | 3000 | 295 | 160 |

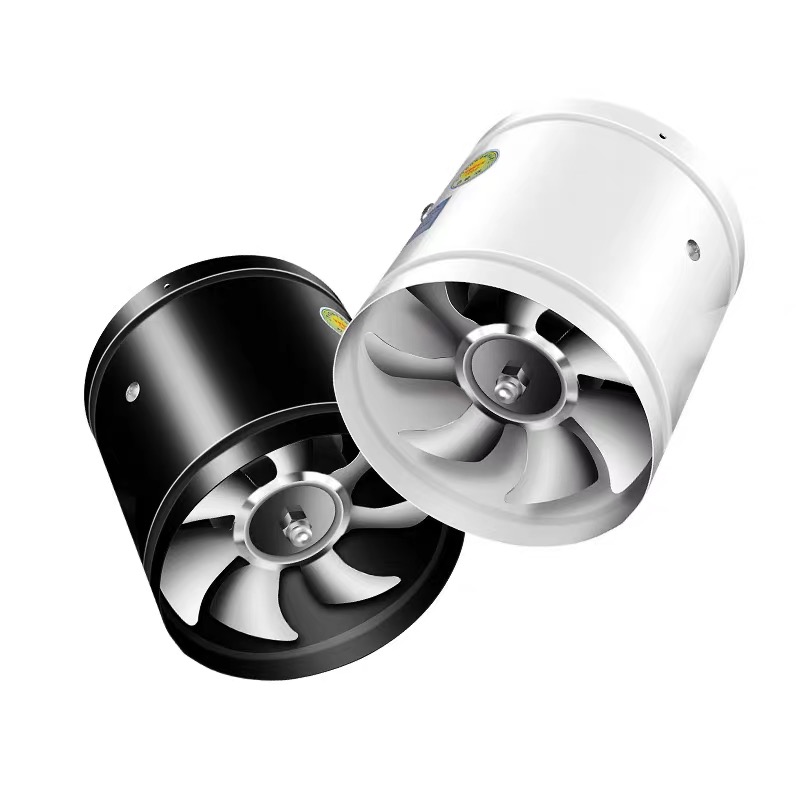

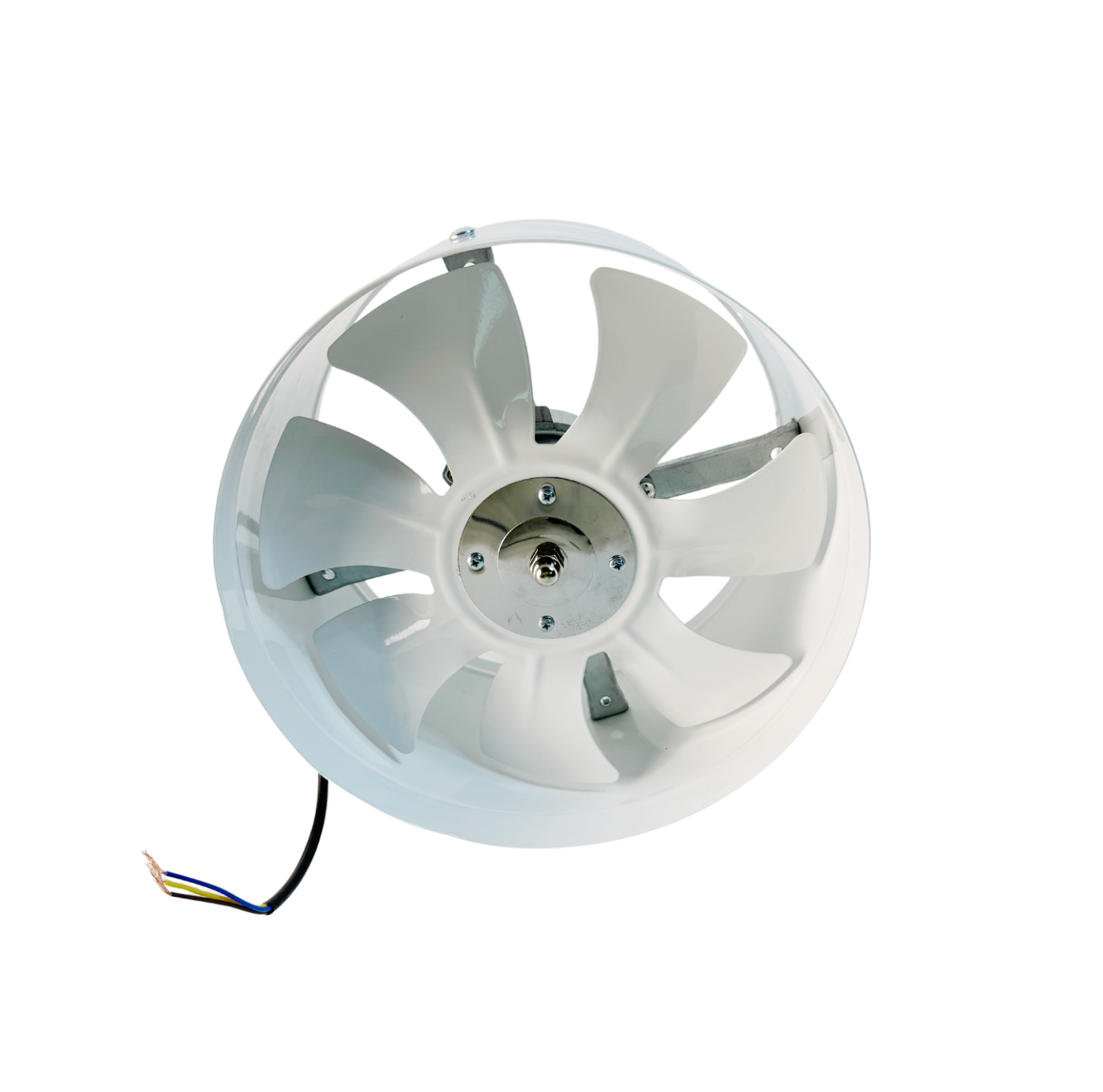

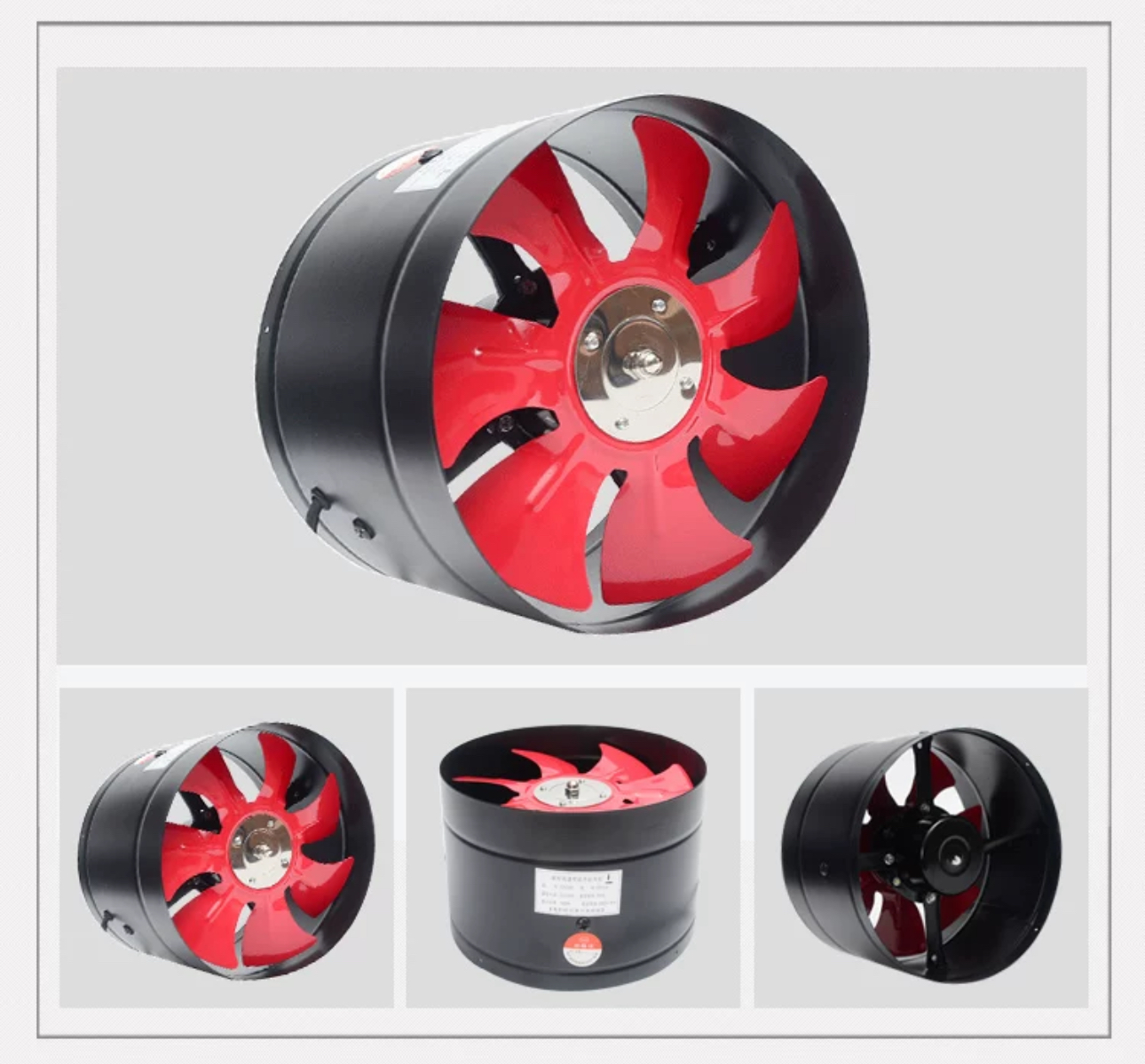

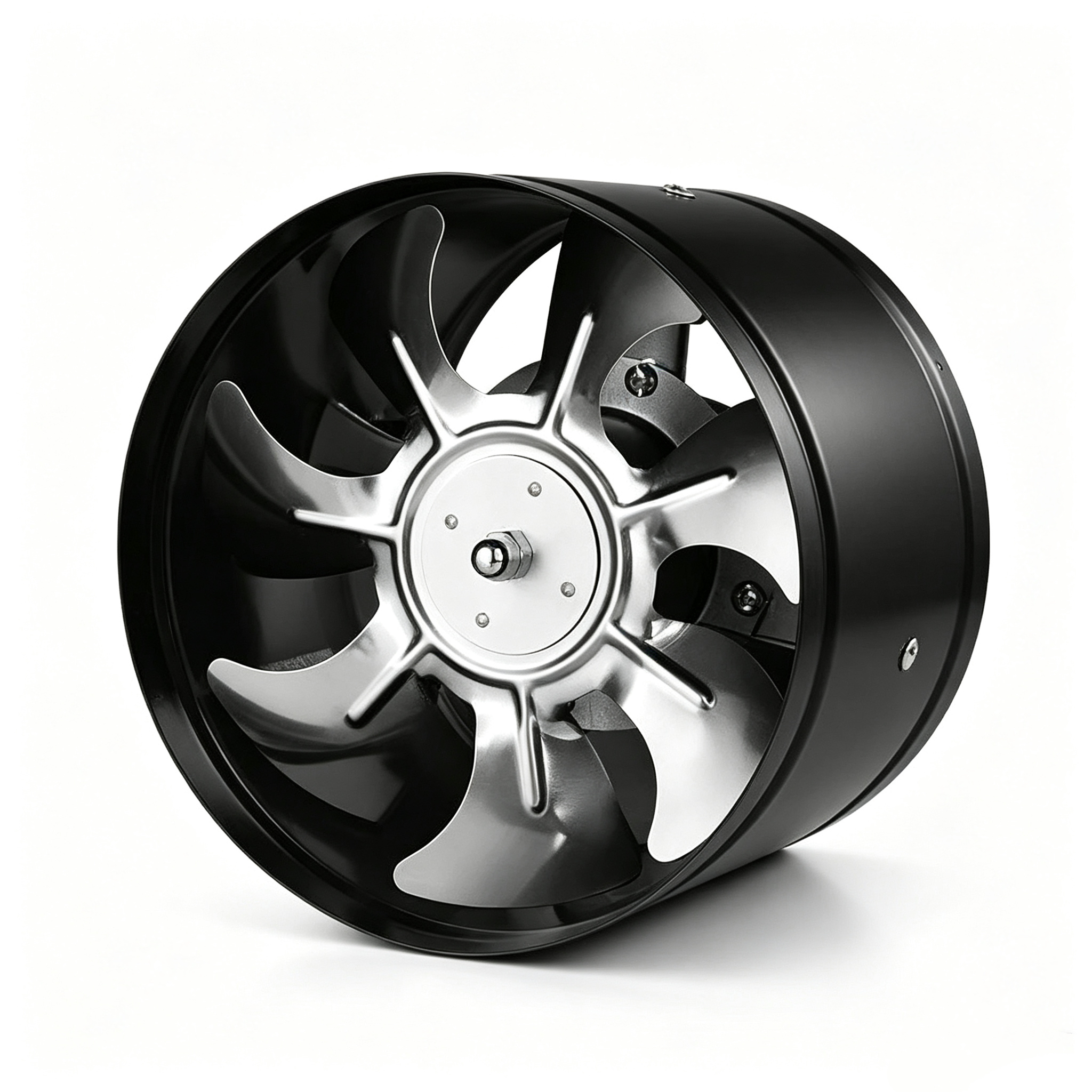

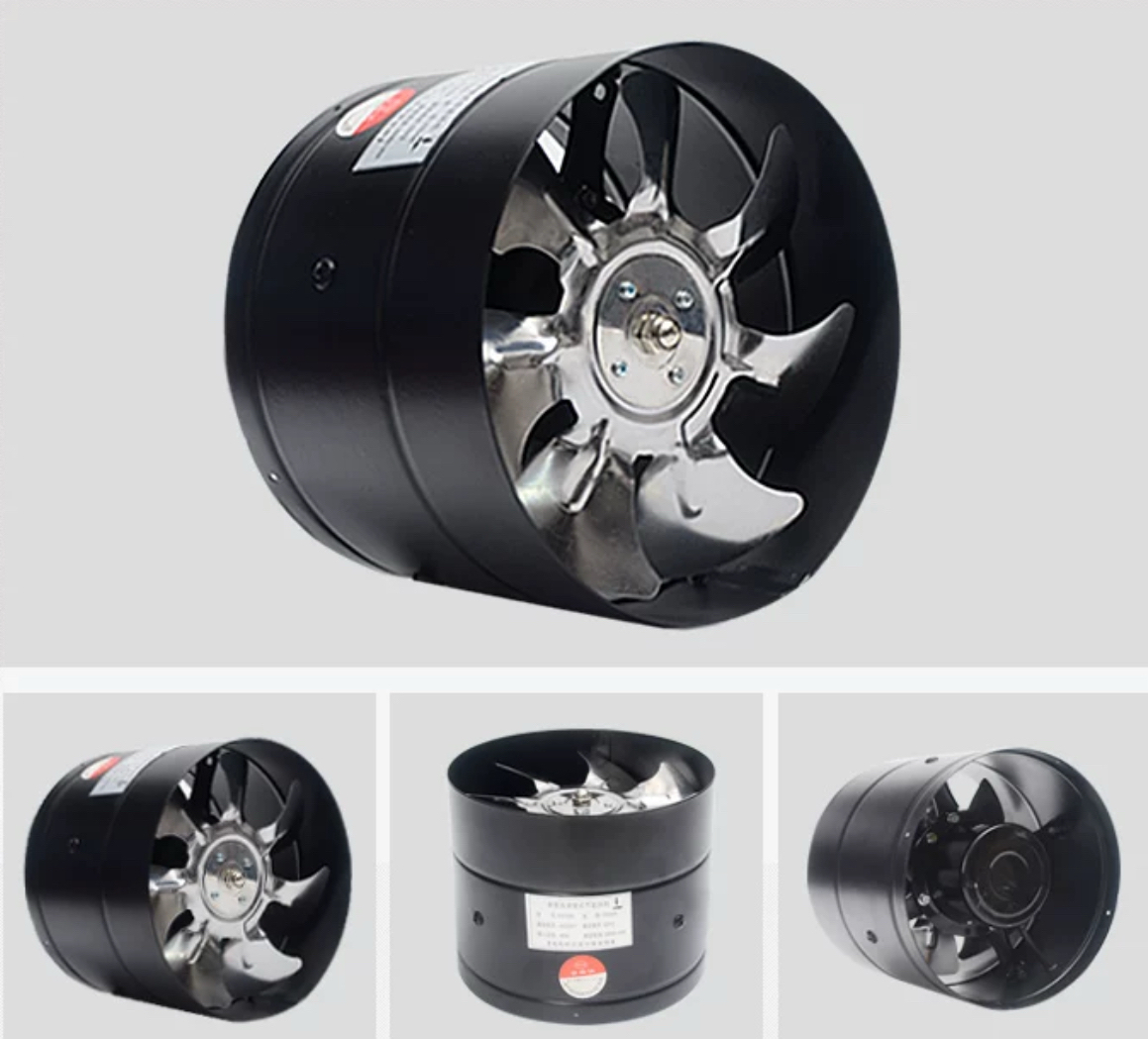

Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|---|---|---|
| GY-100 | 10.5 | 8 | 10.5 | 56 | 28.5 | 23.5 | 30 |
| GY-150 | 15.5 | 15.5 | 16 | 50 | 32.5 | 35 | 12 |
| GY-180 | 19 | 19 | 15.5 | 60 | 40 | 34 | 8 |
| GY-200 | 20.5 | 20.5 | 15.5 | 43 | 43 | 34 | 8 |
| GY-250 | 25 | 25 | 17 | 52 | 26.5 | 54 | 6 |
| GY-300 | 30.5 | 30.5 | 18 | 64 | 32.5 | 56 | 6 |
