Compact Duct Exhaust Fans, Metal Exhaust Fans
All-Metal Wall-Mounted Exhaust Fan

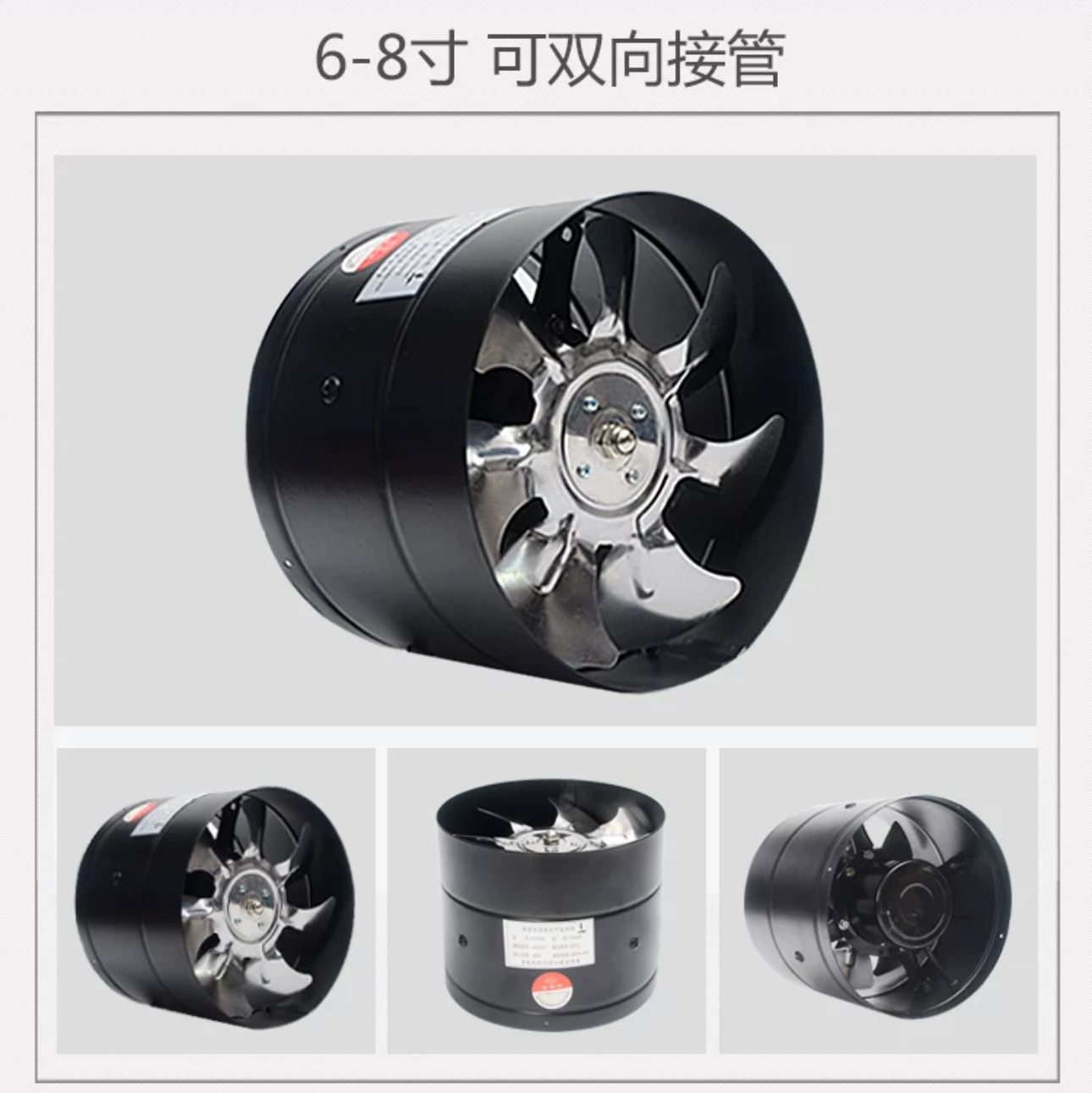

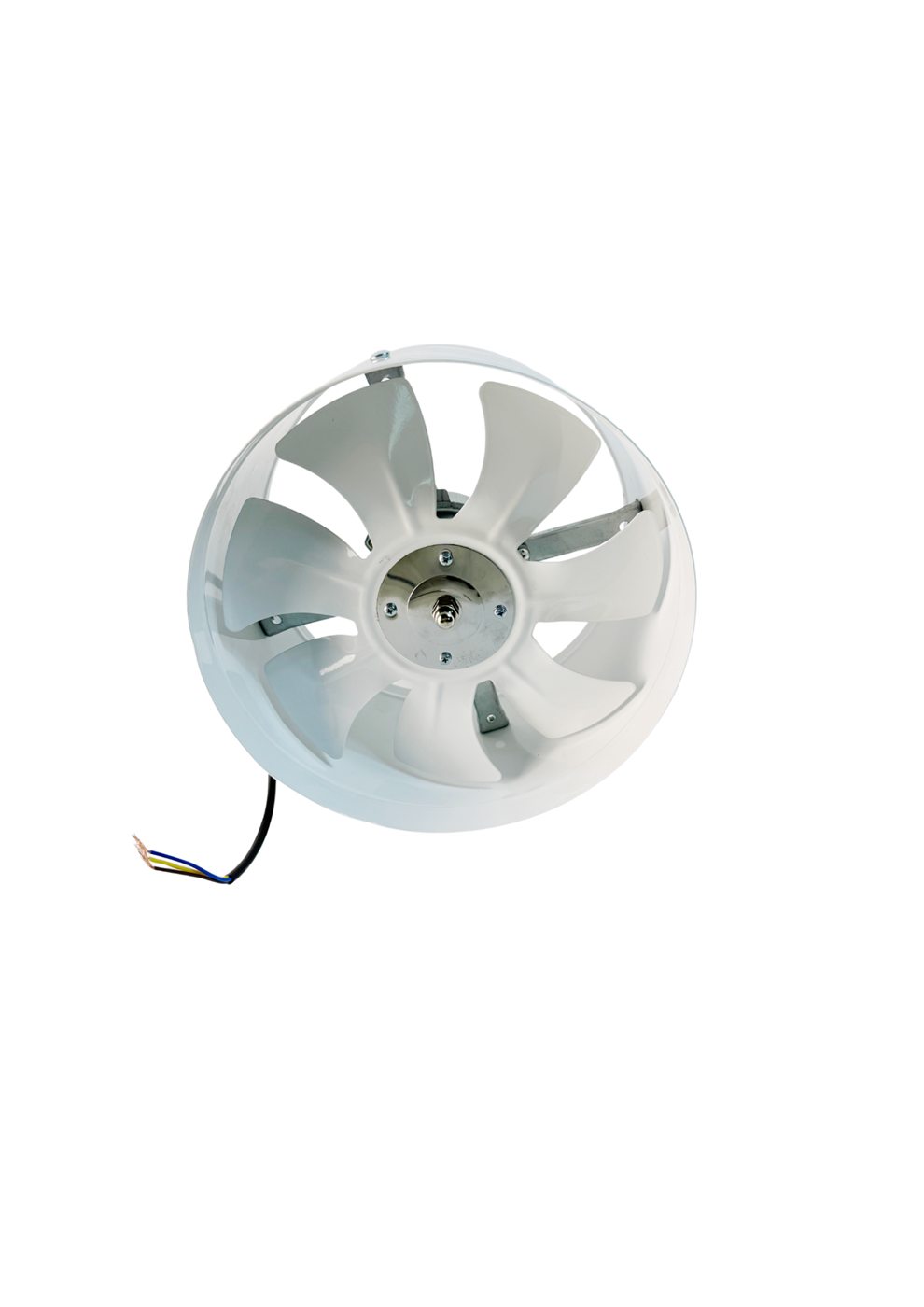

Compact wall duct series 150-300 mm, 780-3000 m3/h. Black, white, or stainless finishes with optional plug wiring.
Product Overview
Compact wall duct series 150-300 mm, 780-3000 m3/h. Black, white, or stainless finishes with optional plug wiring.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
All-metal Wall-mounted Exhaust Fan
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | RPM (r/min) | Noise (dB) | Air volume (m3/h) | Hole size (mm) | Height (mm) |
|---|---|---|---|---|---|---|---|---|
| 150 | 50 | 220 | 40 | 2800 | ≤69 | 780 | 143 | 140 |
| 180 | 50 | 220 | 50 | 2800 | ≤69 | 980 | 175 | 140 |
| 200 | 50 | 220 | 80 | 2800 | ≤69 | 1280 | 195 | 145 |
| 250 | 50 | 220 | 100 | 2800 | ≤69 | 2100 | 245 | 155 |
| 300 | 50 | 220 | 120 | 2800 | ≤69 | 3000 | 295 | 160 |
Product Details

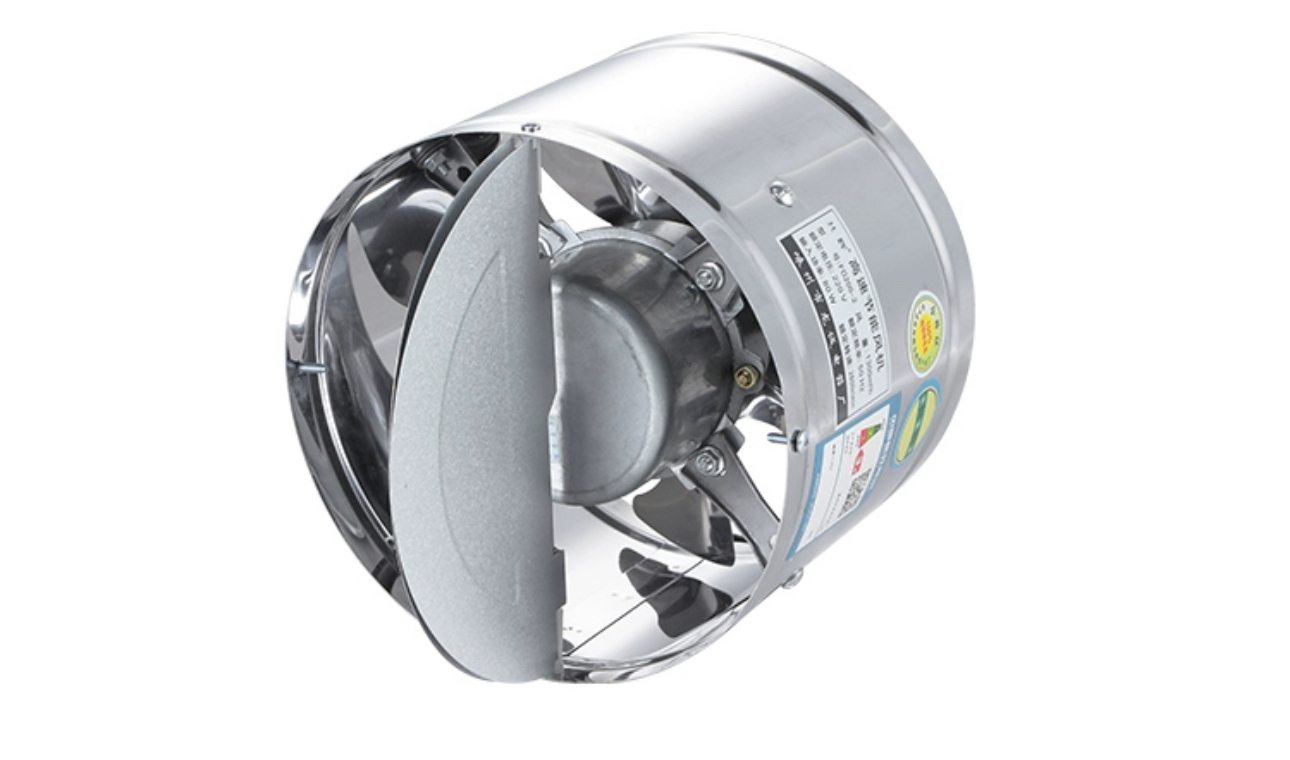

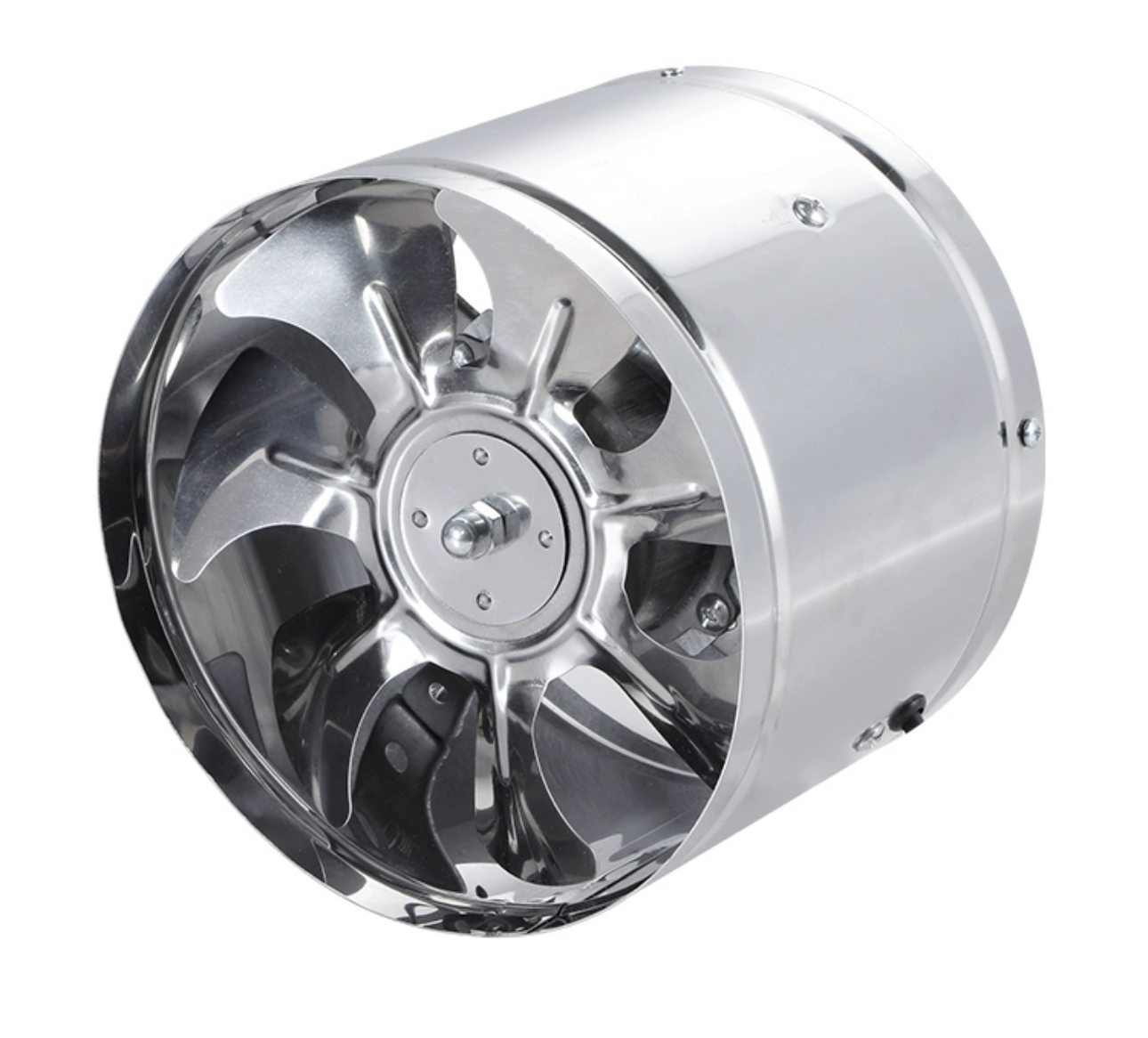

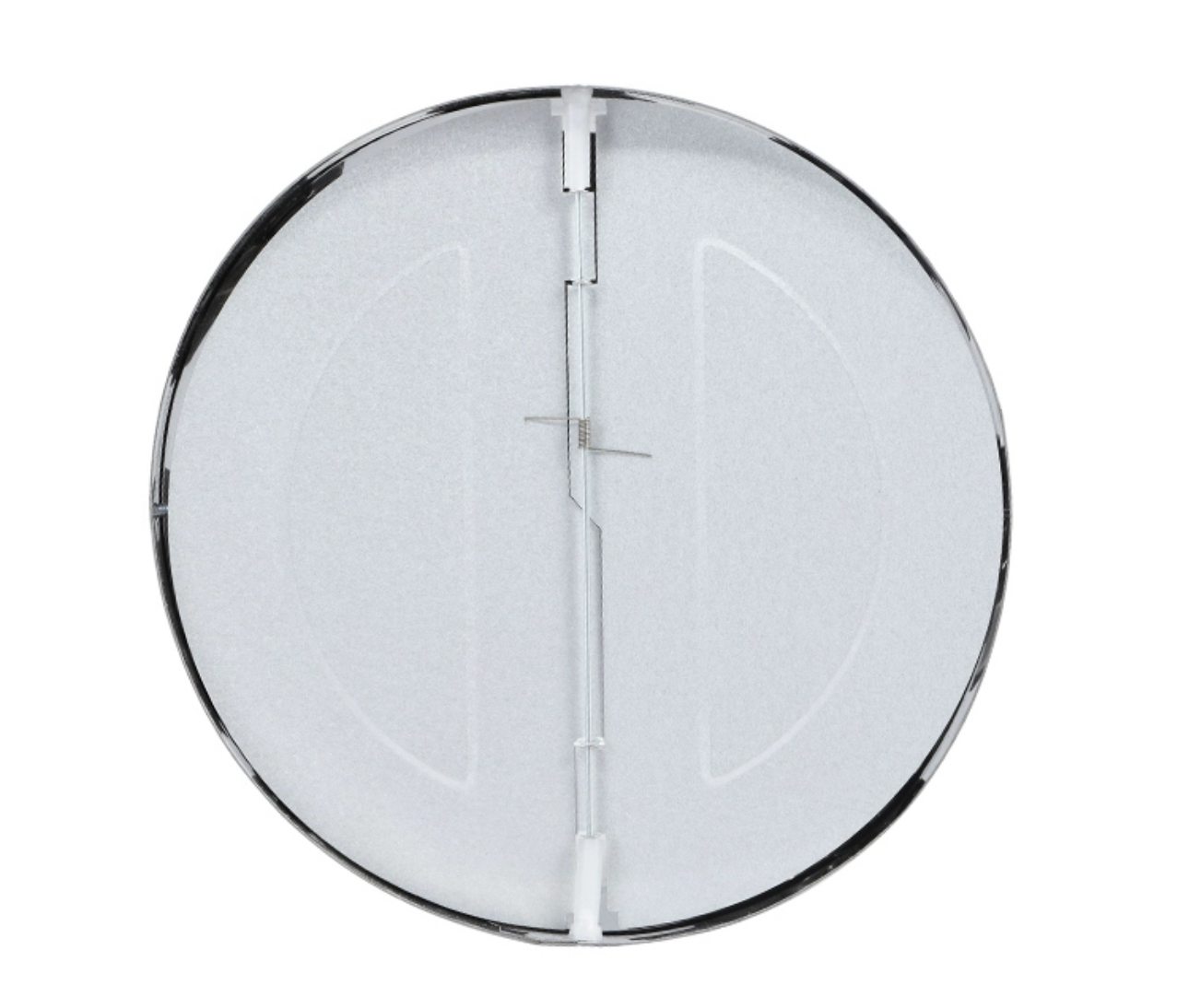

Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|---|---|---|
| 150 | 15.5 | 15.5 | 16 | 50 | 32.5 | 35 | 12 |
| 180 | 19 | 19 | 15.5 | 60 | 40 | 34 | 8 |
| 200 | 20.5 | 20.5 | 15.5 | 43 | 43 | 34 | 8 |
| 250 | 25 | 25 | 17 | 52 | 26.5 | 54 | 6 |
| 300 | 30.5 | 30.5 | 18 | 64 | 32.5 | 56 | 6 |
