Axial Duct Fans, Metal Exhaust Fans

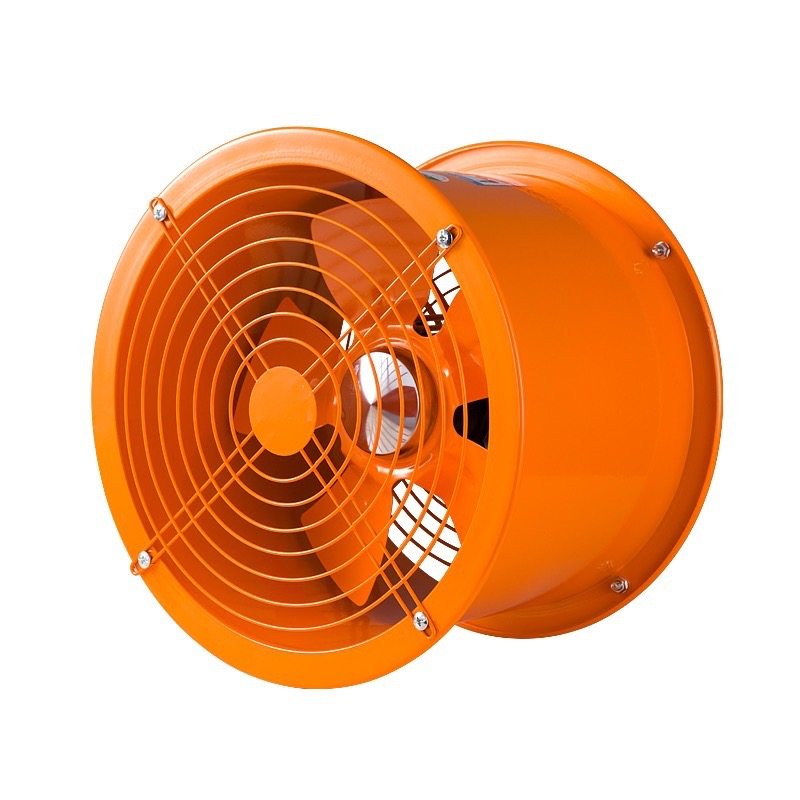

Orange Axial Fan (5-Blades, Iron)

Orange or black duct series 200-400 mm, 1300-7500 m3/h. 5-blade iron impeller, with double-sides flange.

Product Overview

Orange or black duct series 200-400 mm, 1280-8000 m3/h. 5-blade iron impeller, single or double-sided guard.

The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.

Name	Model	Frequency	Voltage	Watt	Speed	Noise	Air Volume	Inner Diameter	Height	Outer Diameter
Orange Duct Fan	200	50	220	80	2800	≤69	1280	210	240	253
	250	50	220	100	2800	≤69	2100	260	240	305
	300	50	220	120	2800	≤69	3000	310	240	355
	350	50	220	280	2800	≤69	5400	360	240	405
	400	50	220	320	2800	≤69	8000	410	240	458

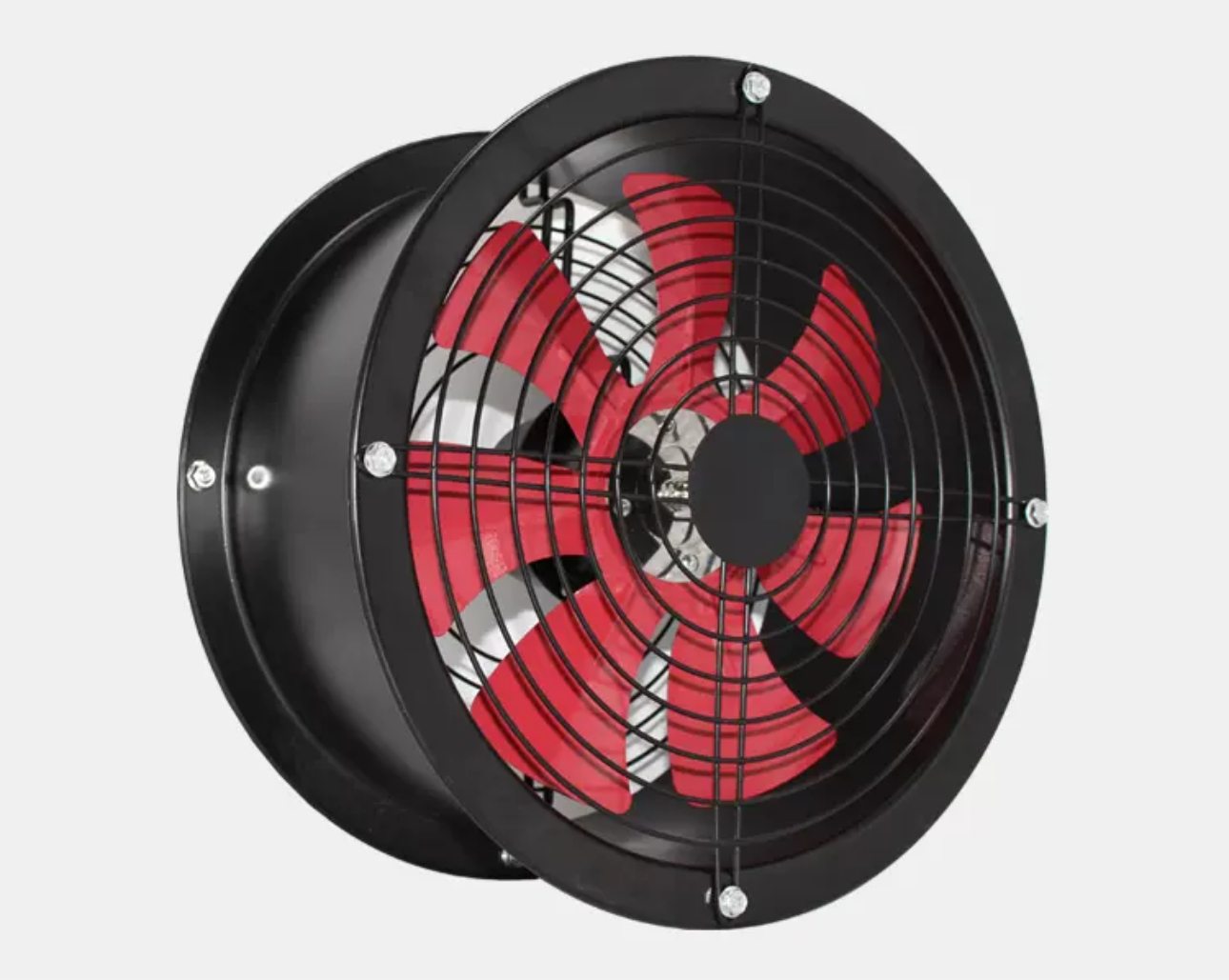

Black Duct Fan	200	50	220	80	2800	≤69	1280	210	240	253
	250	50	220	100	2800	≤69	2100	160	240	305
	300	50	220	120	2800	≤69	3000	310	240	355
	350	50	220	280	2800	≤69	5400	360	240	405
	400	50	220	320	2800	≤69	8000	410	240	458

Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.

	Model	Outer L (cm)	Outer W (cm)	Outer H (cm)	Unit/Carton
Orange Duct Fan	200	27	27	26.8	1
	250	31.5	31.5	26.8	1
	300	37	37	26.8	1
	350	42	42	26.8	1
	400	47	47	26.8	1

Model 200, 250, 300, 350, 400

Voltage 220 V

Airflow 1300-7500 m3/h

Noise ≤69 dB

Material Metal construction

Packaging See packaging table below
