Metal Exhaust Fans

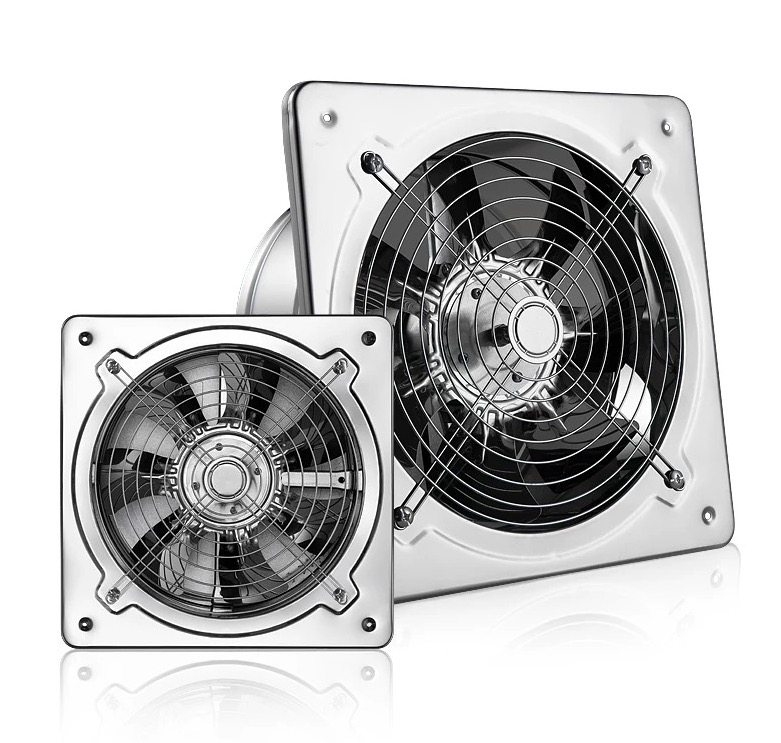

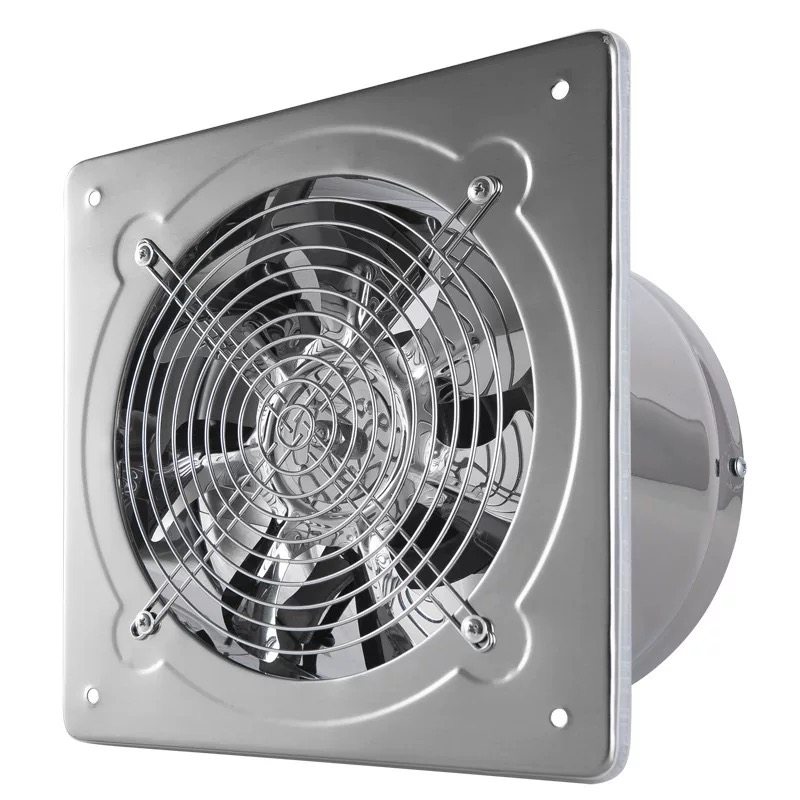

CR Stainless Steel High Speed Exhaust Fan (intake/exhaust)
One-way GY-100 to GY-400 and two-ways(intake/exhaust) GY-150 to GY-300. 140-7500 m3/h at 2800 rpm, iron or CR stainless housing with 7-blade iron or stainless options.
Product Overview
There are two types :one way(intake or exhuast);Two-ways:(intake and exhaust).

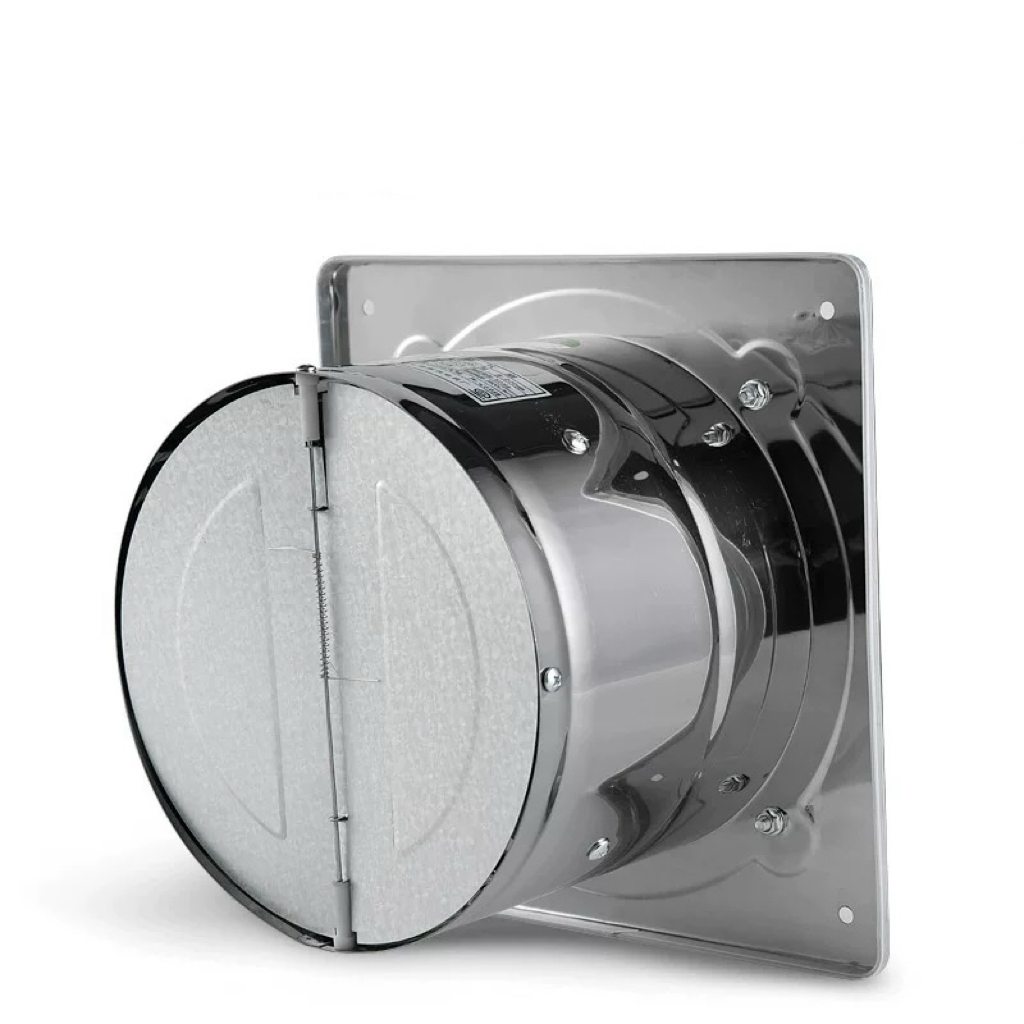

One way’s model is from GY100-GY400. Equipped with a rear backdraft damper
Two-ways’ model is from GY150-GY300. No backdraft damper.
Three regular colors are available for selection: CR stainless steel/white/black. Other colors can be customized.
Technical Specifications
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | RPM (r/min) | Noise (dB) | Air volume (m3/h) | Panel size (mm) | Hole size (mm) | Height (mm) | screw hole distance (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| GY100 | 50 | 220 | 20 | 2800 | ≤69 | 140 | 133*133 | 95 | 72 | 113*113 |
| GY150 | 50 | 220 | 40 | 2800 | ≤69 | 780 | 192*192 | 145 | 135 | 162*162 |
| GY180 | 50 | 220 | 50 | 2800 | ≤69 | 980 | 231*231 | 173 | 136 | 193*193 |
| GY200 | 50 | 220 | 80 | 2800 | ≤69 | 1280 | 250*250 | 195 | 150 | 212*212 |
| GY250 | 50 | 220 | 100 | 2800 | ≤69 | 2100 | 302*302 | 245 | 155 | 256*256 |
| GY300 | 50 | 220 | 120 | 2800 | ≤69 | 3000 | 3508350 | 295 | 160 | 297*297 |
| GY350 | 50 | 220 | 280 | 2800 | ≤69 | 5500 | 395*395 | 345 | 190 | 310*310 |
| GY400 | 50 | 220 | 320 | 2800 | ≤69 | 7500 | 480*480 | 395 | 190 | 395*395 |
Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|---|---|---|
| GY-100 | 13.7 | 8.5 | 13.7 | 45 | 29 | 30.5 | 20 |
| GY-150 | 19.5 | 14.5 | 19.5 | 60 | 30 | 40 | 12 |
| GY-180 | 23.2 | 14.5 | 23.3 | 49 | 48 | 45 | 12 |
| GY-200 | 25.2 | 16.5 | 25.5 | 67 | 27 | 52 | 8 |
| GY-250 | 31 | 17 | 31 | 52 | 32 | 64 | 6 |
| GY-300 | 35.5 | 18 | 36 | 73 | 37 | 37 | 4 |
| GY-350 | 48.2 | 18 | 48.5 | 43 | 40 | 43 | 2 |
| GY-400 | 41.2 | 18.5 | 42.5 | 50 | 42 | 50 | 2 |
