Metal Exhaust Fans, Sunflower Grille Exhaust Fans
Full Mental Exhaust Fan (Square Panel, Round Duct)
Decorative square-front round-back grille, 150-300 mm, 780-3000 m3/h, for residential and commercial interiors.
Product Overview
Decorative square-front round-back grille, 150-300 mm, 780-3000 m3/h, for residential and commercial interiors.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
Square Panel, Round Duct
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | RPM (r/min) | Noise (dB) | Air volume (m3/h) | Panel size (mm) | Hole size (mm) | Height (mm) | screw hole distance (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 50 | 220 | 40 | 2800 | ≤69 | 780 | 190×190 | 145 | 140 | 162×162 |
| 180 | 50 | 220 | 60 | 2800 | ≤69 | 980 | 230×230 | 170 | 140 | 195×195 |
| 200 | 50 | 220 | 80 | 2800 | ≤69 | 1280 | 250×250 | 195 | 140 | 212×212 |
| 250 | 50 | 220 | 100 | 2800 | ≤69 | 2100 | 302×302 | 245 | 155 | 256×256 |
| 300 | 50 | 220 | 120 | 2800 | ≤69 | 3000 | 350×350 | 295 | 156 | 295×295 |
| ABCD |

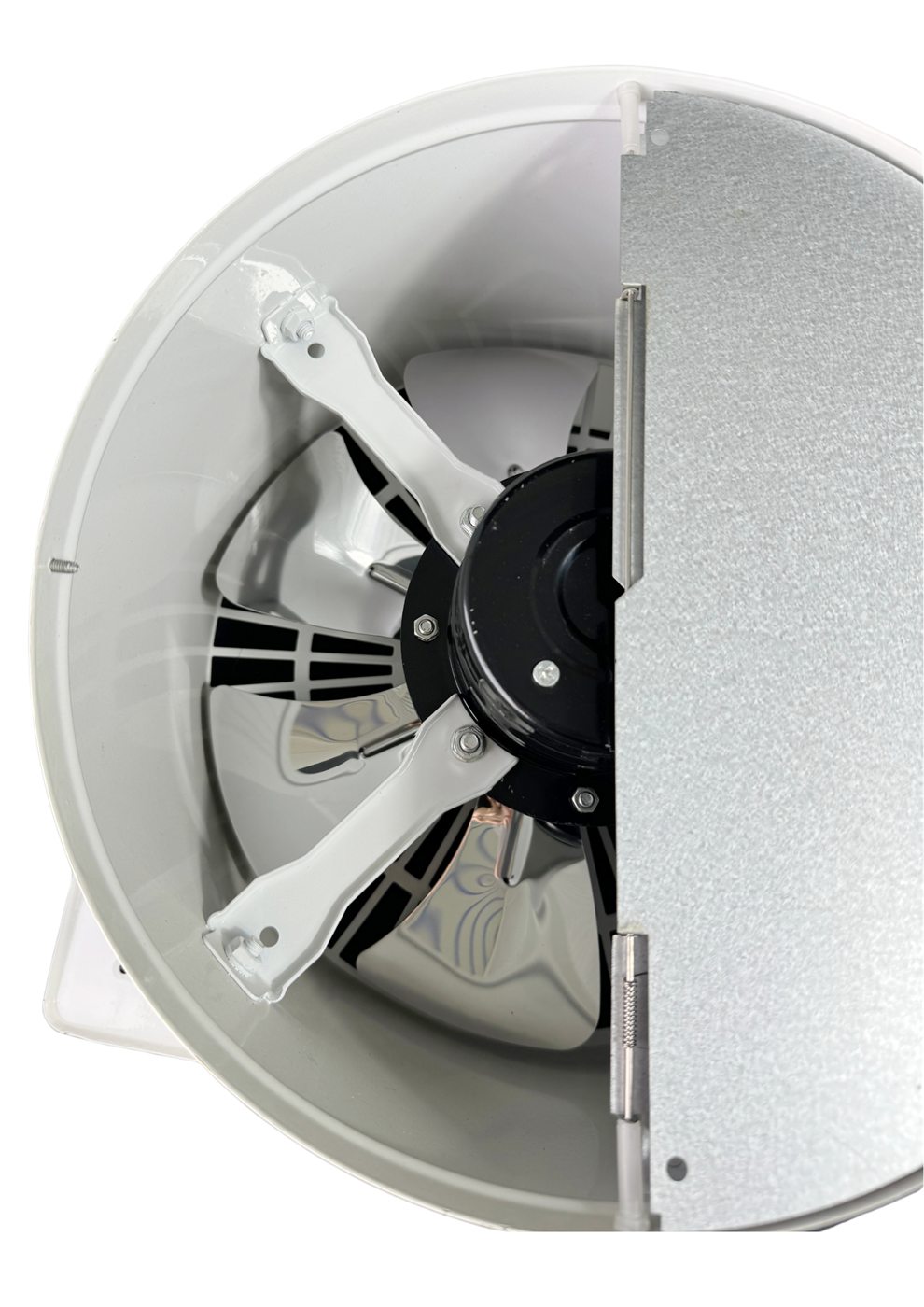

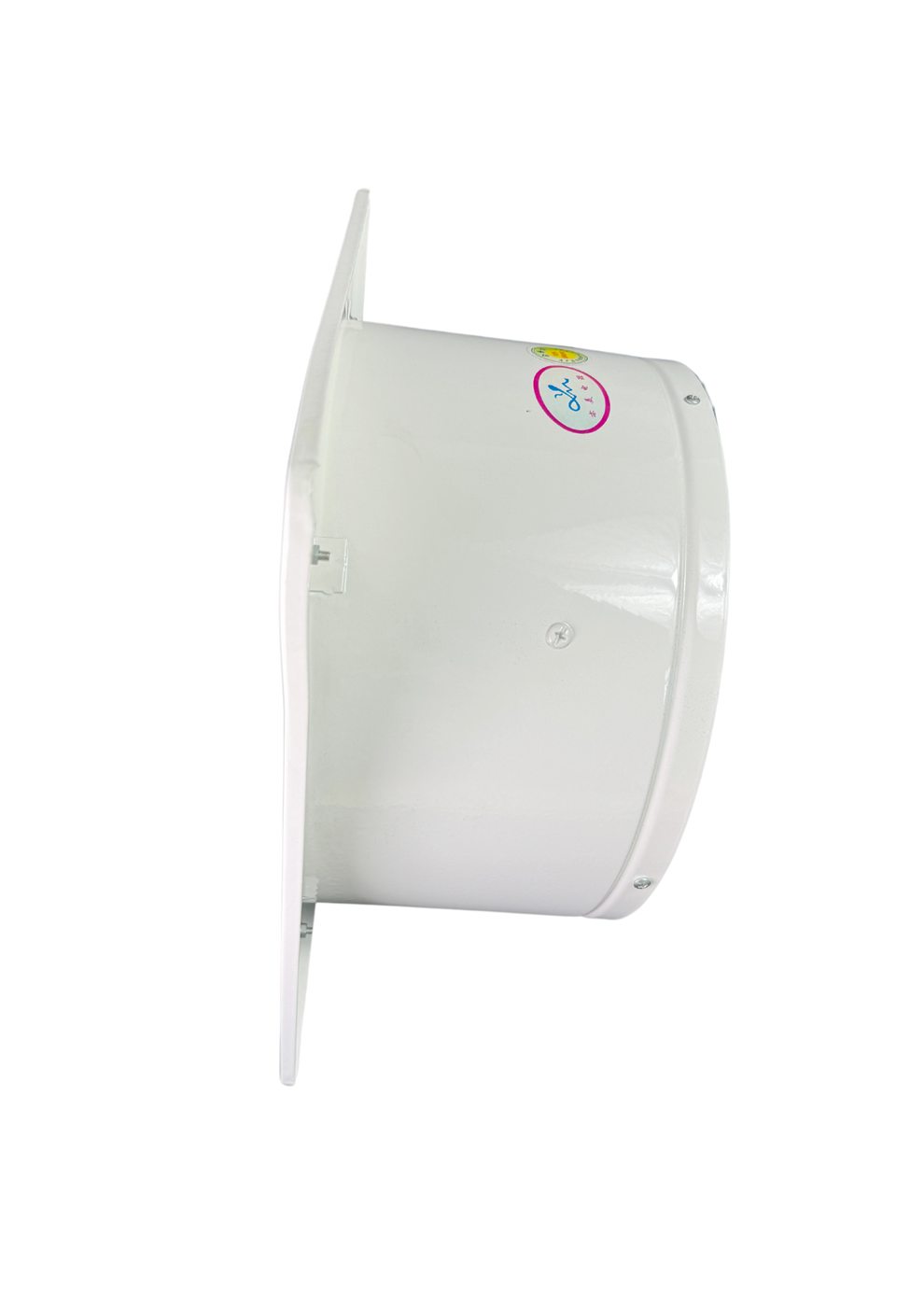

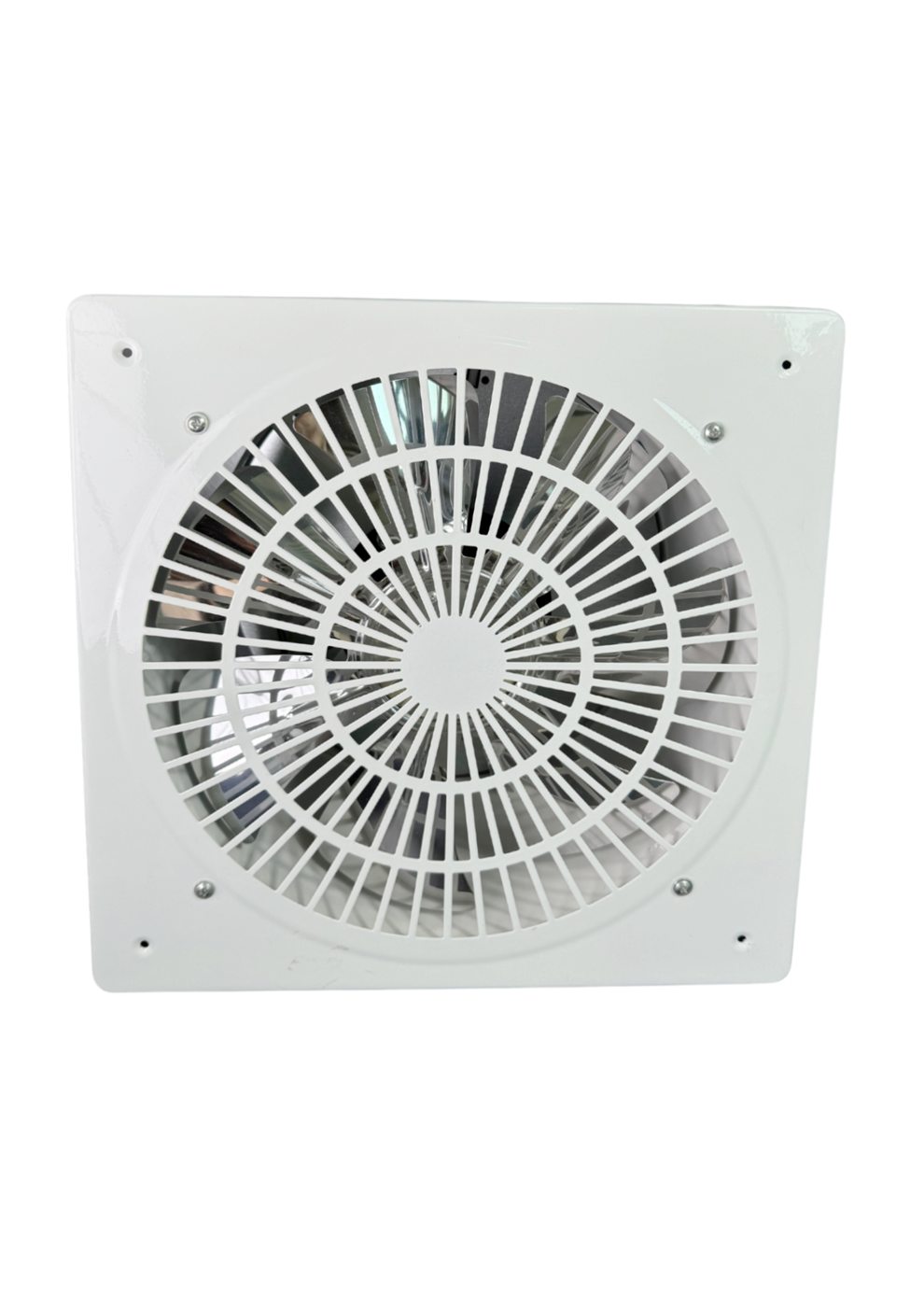

Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton | |
|---|---|---|---|---|---|---|---|---|
| Square Panel, Round Duct | 150 | 19.5 | 14.5 | 19.5 | 60.5 | 30.5 | 40.5 | 12 |
| 180 | 24 | 15 | 24 | 50 | 47 | 50 | 12 | |
| 200 | 25.5 | 16 | 25.5 | 63 | 27 | 53 | 8 | |
| 250 | 31 | 16.5 | 31 | 54 | 33 | 64 | 6 | |
| 300 | 36 | 18 | 36 | 75 | 37 | 38 | 4 |
