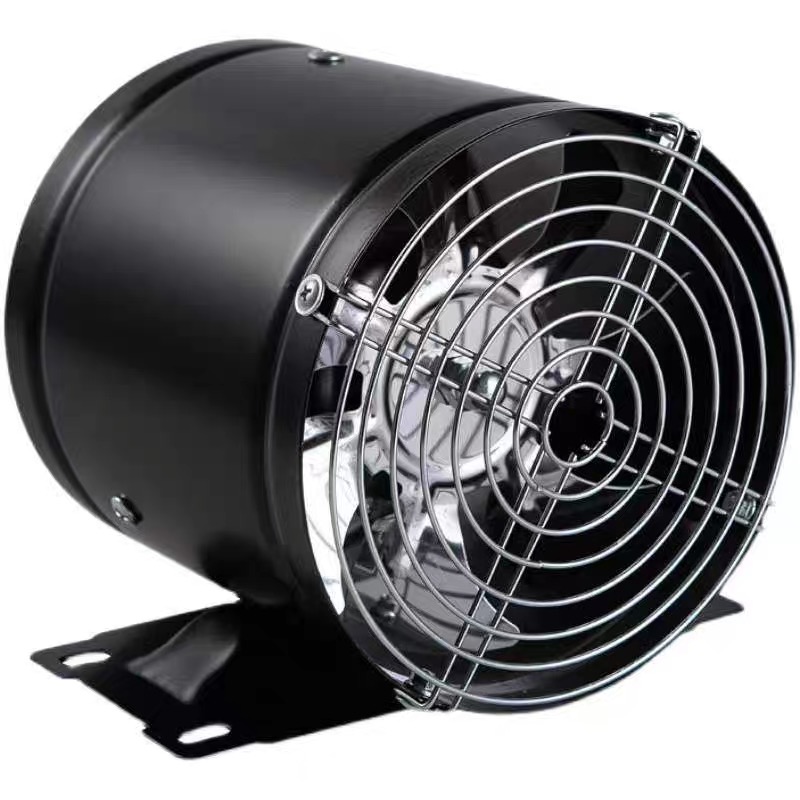

Black Exhaust Fan with Base(intake/exhaust)

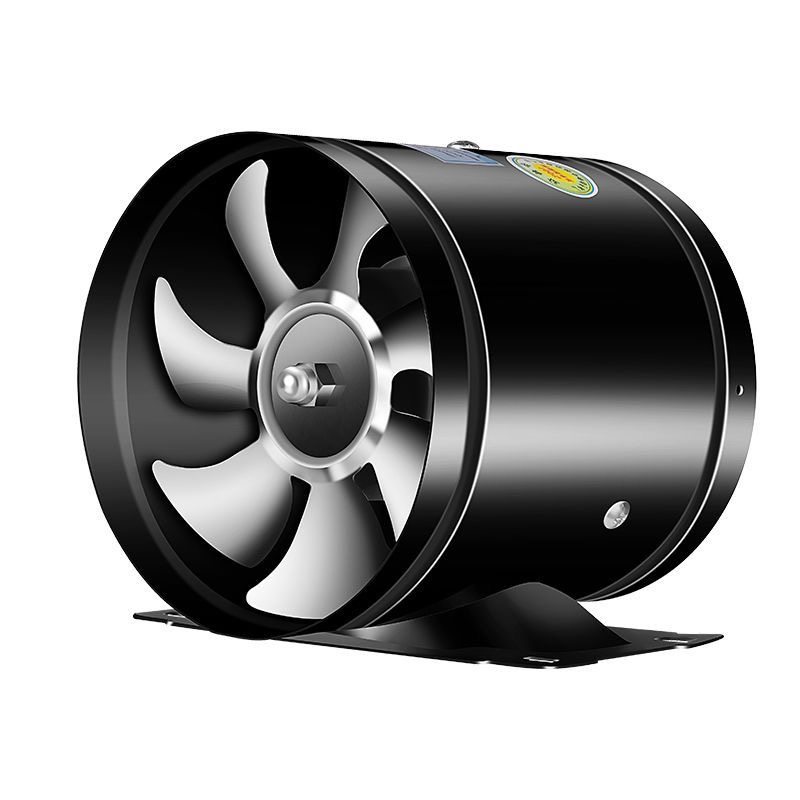

GY-150 to GY-300 with mounting base. Optional front grill, rear damper, or mesh cover for flexible installation.
Product Overview
GY-150 to GY-300 with mounting base. Optional front grill, rear damper, or mesh cover for flexible installation.

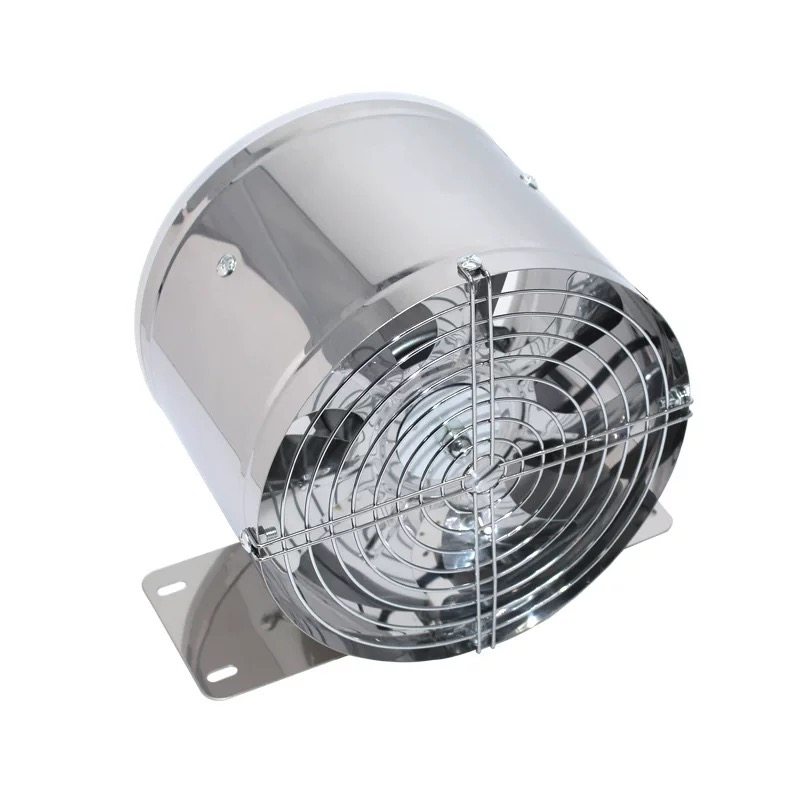

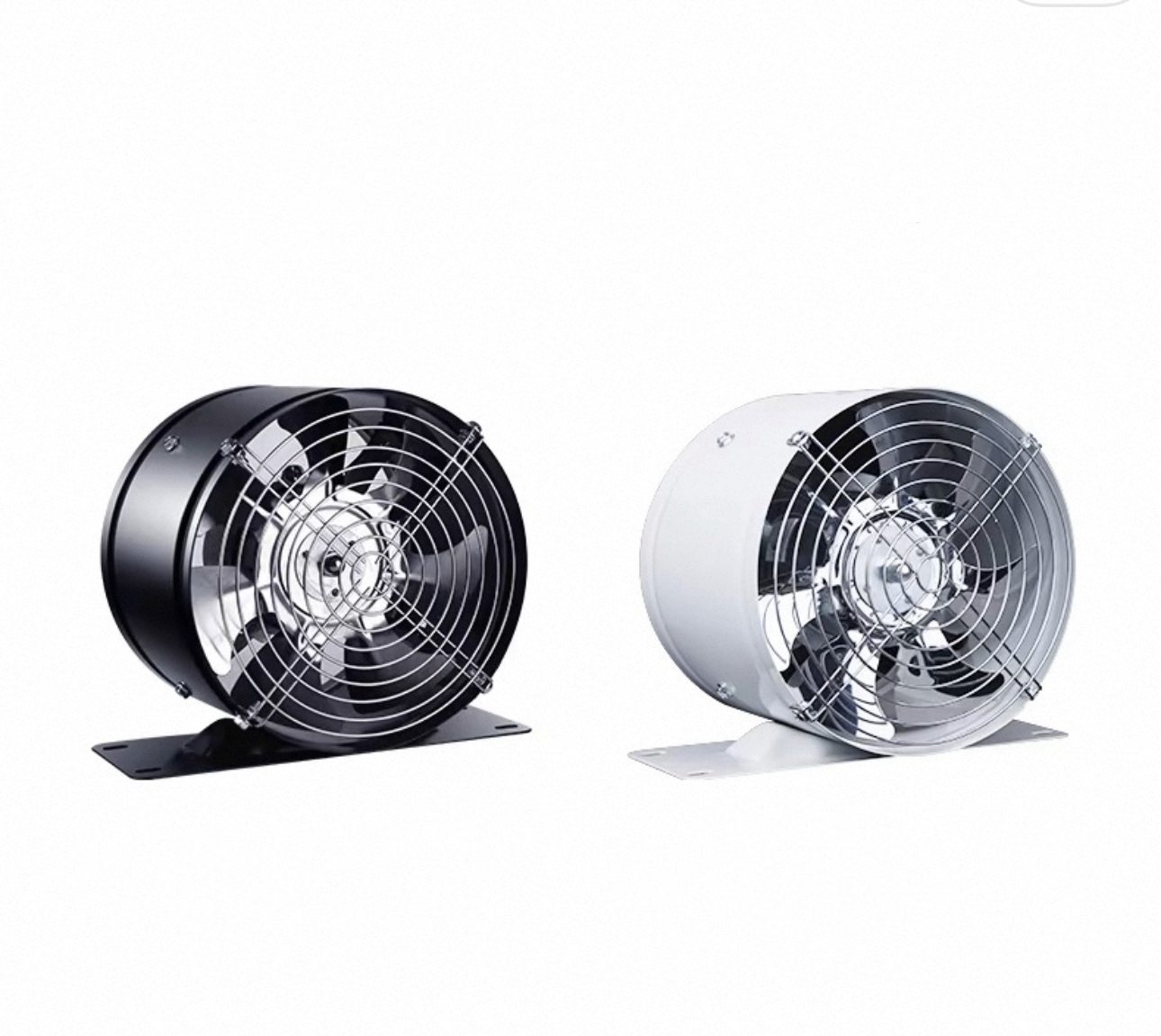

Available in 3 standard colors: white/black/ CR stainless steel
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
Exhaust fan with base
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | RPM (r/min) | Noise (dB) | Air volume (m3/h) | width and length of baseboard (mm) | Hole size (mm) | Height (mm) | baseboard of screw hole distance (width and length) (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| GY-150 | 50 | 220 | 40 | 2800 | ≤69 | 780 | 86×176 | 143 | 140 | 62×150 |
| GY-180 | 50 | 220 | 50 | 2800 | ≤69 | 980 | 86×176 | 175 | 140 | 62×150 |
| GY-200 | 50 | 220 | 80 | 2800 | ≤69 | 1280 | 86×176 | 195 | 145 | 62×150 |
| GY-250 | 50 | 220 | 100 | 2800 | ≤69 | 2100 | 92×240 | 245 | 155 | 62×216 |
| GY-300 | 50 | 220 | 120 | 2800 | ≤69 | 3000 | 92×240 | 295 | 160 | 62×216 |
Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|---|---|---|
| GY-150 | 18.3 | 16 | 16.5 | 58 | 34 | 35.5 | 12 |
| GY-180 | 19 | 19 | 15 | 60 | 40 | 32.5 | 8 |
| GY-200 | 22 | 20.5 | 16 | 46 | 43 | 34.5 | 8 |
| GY-250 | 25 | 25 | 17 | 55 | 28 | 53 | 6 |
| GY-300 | 31.5 | 31.5 | 18 | 65 | 33 | 57 | 6 |
