Double-Grill Exhaust Fans, Metal Exhaust Fans
Exhaust Fan with Two Mesh Covers
GY-250 to GY-400, 1850-7500 m3/h. Double safety grills keep fingers out; 4, 5, or 7-blade iron or stainless options.
Product Overview
GY-250 to GY-400, 1850-7500 m3/h. Double safety grills keep fingers out; 4, 5, or 7-blade iron or stainless options.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | speed (r/min) | Noise (dB) | Air volume (m3/h) | Panel size (mm) | Height (mm) | screw hole distance (mm) |
|---|---|---|---|---|---|---|---|---|---|
| GY-250 | 50 | 220 | 100 | 2800 | ≤69 | 1850 | 300×300 | 140 | 243×243 |
| GY-300 | 50 | 220 | 125 | 2800 | ≤69 | 3100 | 350×350 | 142 | 296×296 |
| GY-350 | 50 | 220 | 280 | 2800 | ≤69 | 5500 | 400×400 | 153 | 310×310 |
| GY-400 | 50 | 220 | 320 | 2800 | ≤69 | 7500 | 480×480 | 160 | 393×393 |
Product Details

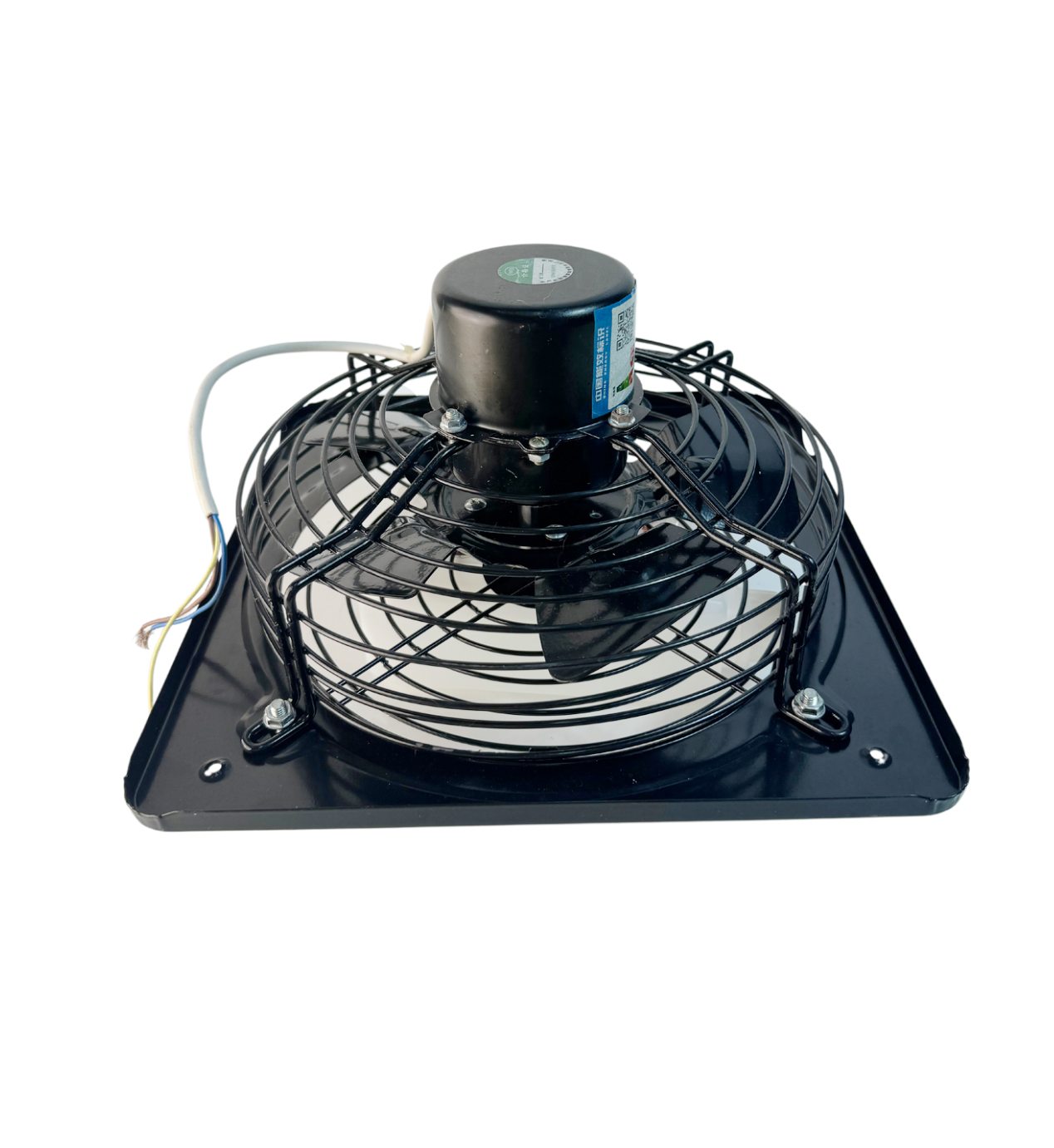

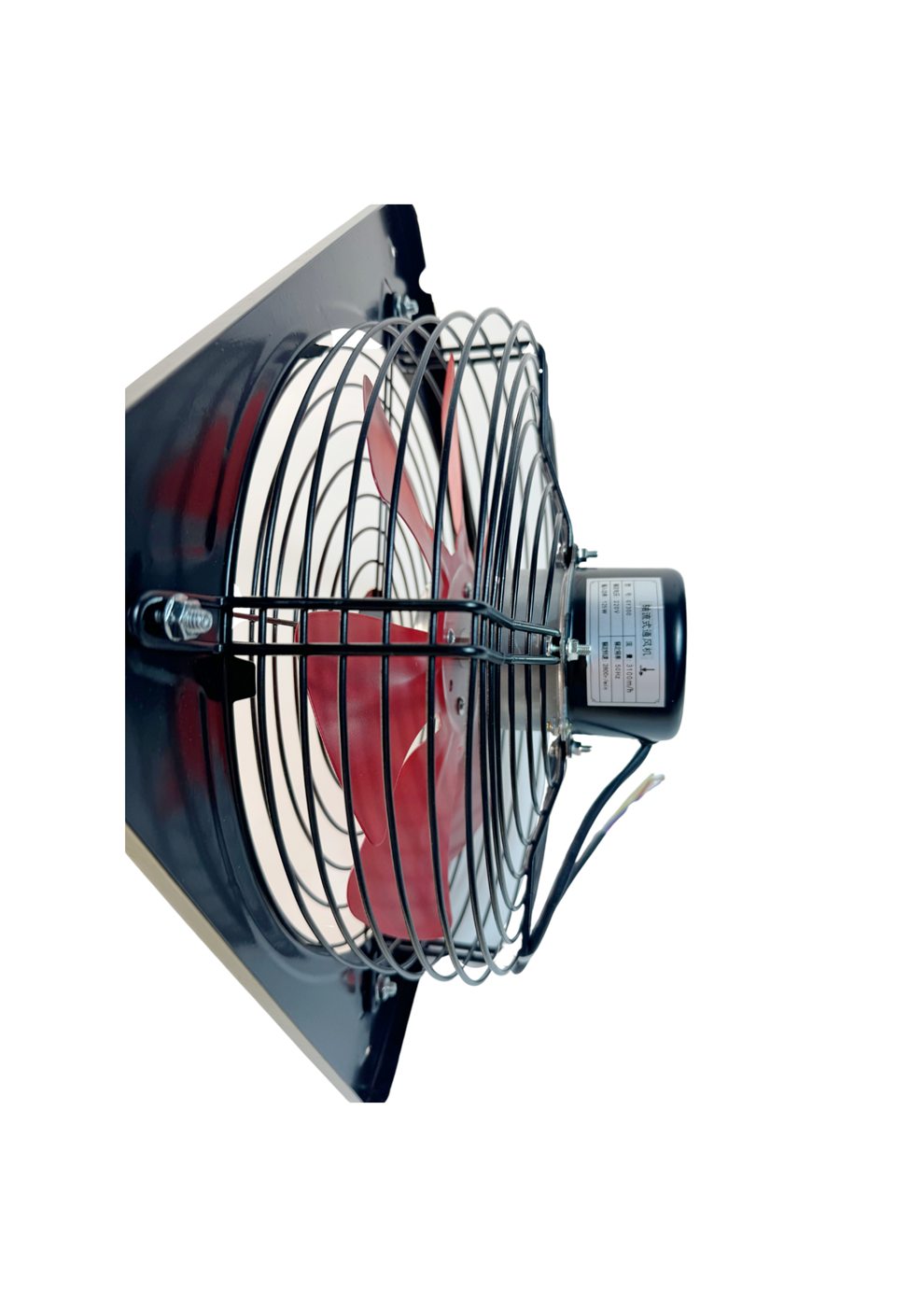

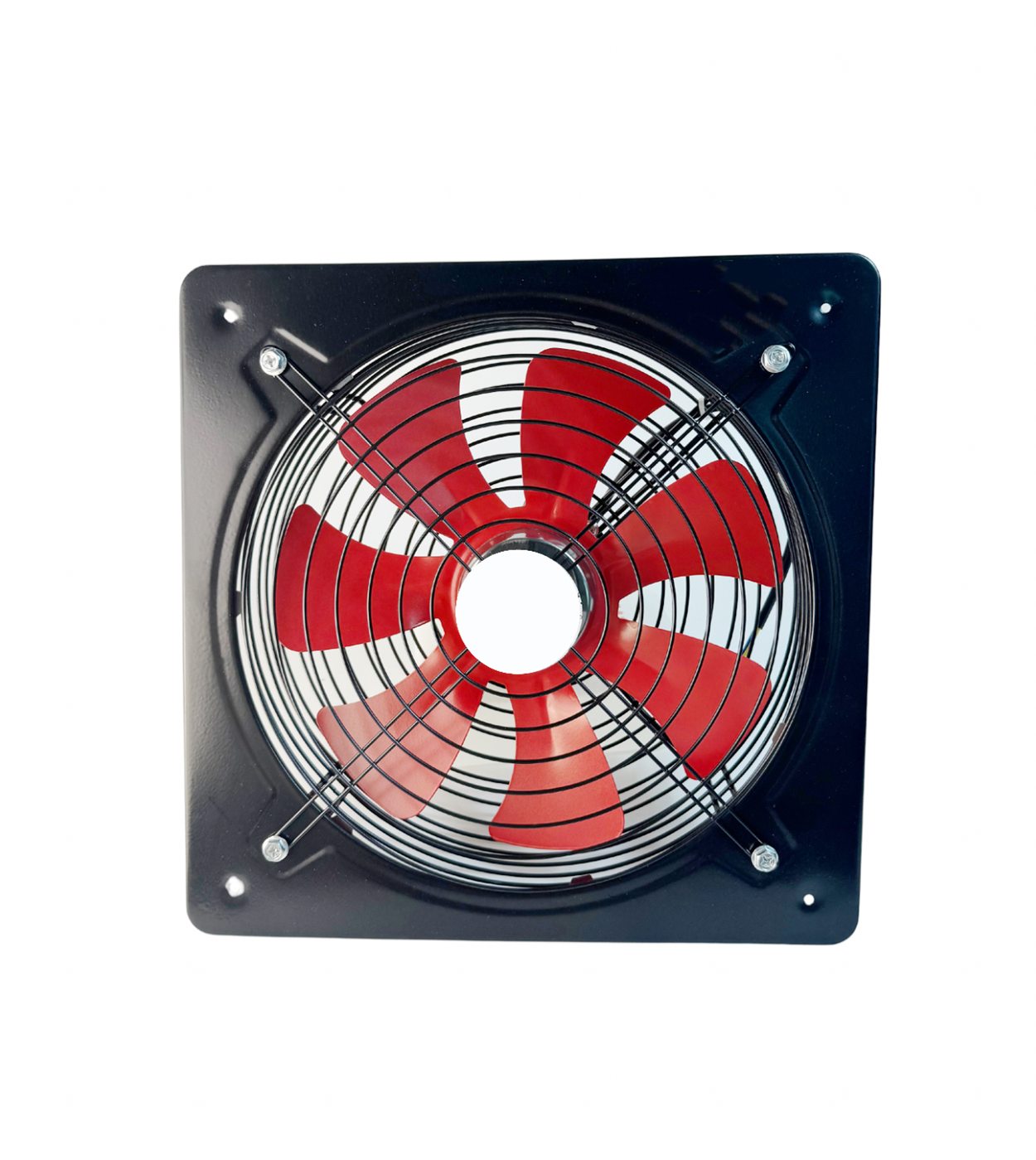

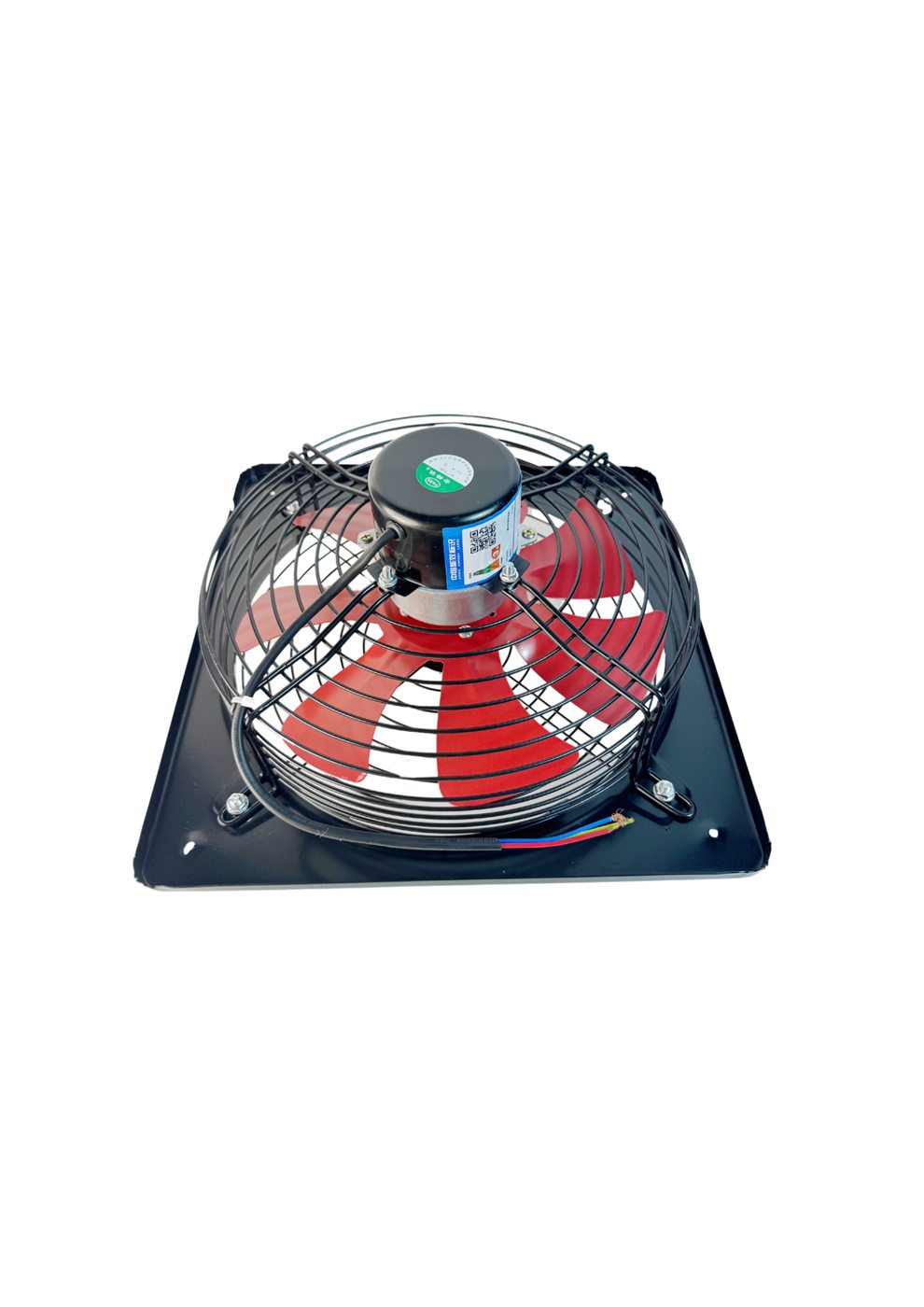

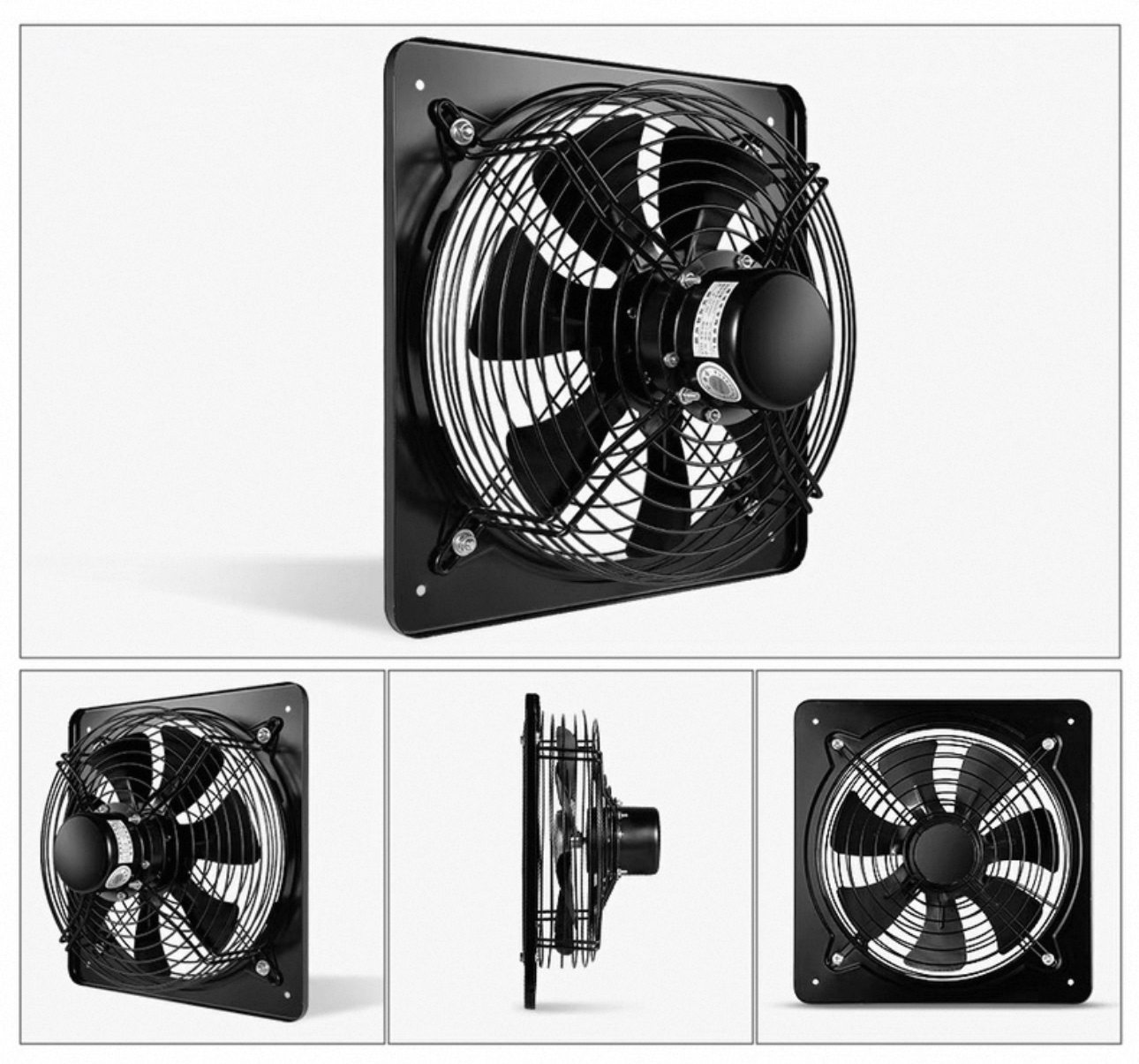

Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|---|---|---|
| GY-250 | 30.5 | 14.5 | 30.5 | 46.5 | 31.5 | 62.5 | 6 |
| GY-300 | 35.5 | 15.5 | 35.5 | 50.5 | 36.5 | 73 | 6 |
| GY-350 | 40 | 17.5 | 40 | 74 | 40.5 | 40.5 | 4 |
| GY-400 | 48.5 | 18.5 | 48.5 | 78 | 49.5 | 49.5 | 4 |
