External Rotor Axial Fans, Metal Exhaust Fans

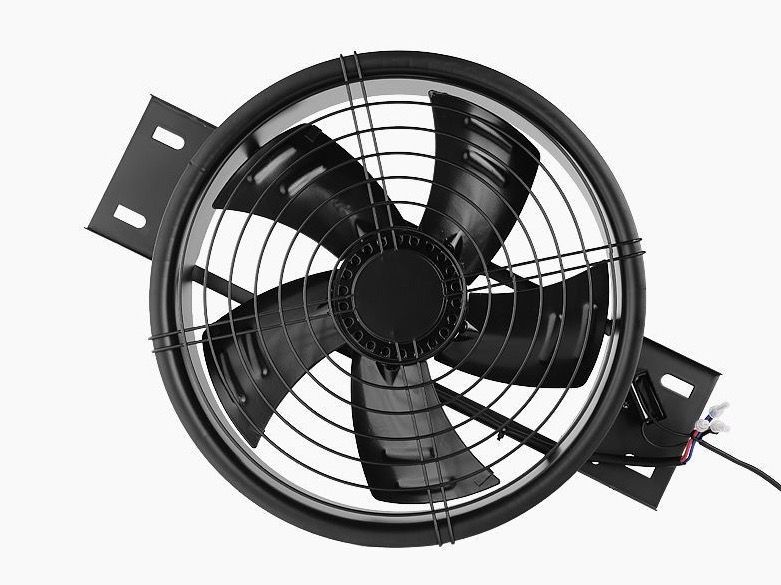

External Rotor Axial Flow Fan
200-400 mm, 990-5000 m3/h, noise from 45 dB. Direct-on-line design needs no VFD, built for continuous industrial duty.
Product Overview
200-400 mm, 990-5000 m3/h, noise from 45 dB. Direct-on-line design needs no VFD, built for continuous industrial duty.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
External rotor axial flow fan
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | speed (r/min) | Noise (dB) | Air volume (m3/h) | Length of the Board (mm) | Height of the Cylinder (mm) | Inner Diameter of the Cylinder (mm) | Outer Diameter of the Cylinder (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 200 | 50 | 220 | 80 | 2650 | ≤45 | 990 | 360 | 90 | 200 | 220 |
| 250 | 50 | 220 | 100 | 2650 | ≤55 | 1750 | 409 | 90 | 250 | 270 |
| 300 | 50 | 220 | 110 | 2650 | ≤60 | 2750 | 460 | 100 | 300 | 320 |
| 350 | 50 | 220 | 190 | 2650 | ≤60 | 3500 | 510 | 115 | 350 | 370 |
| 400 | 50 | 220 | 280 | 1450 | ≤65 | 5000 | 600 | 140 | 400 | 420 |

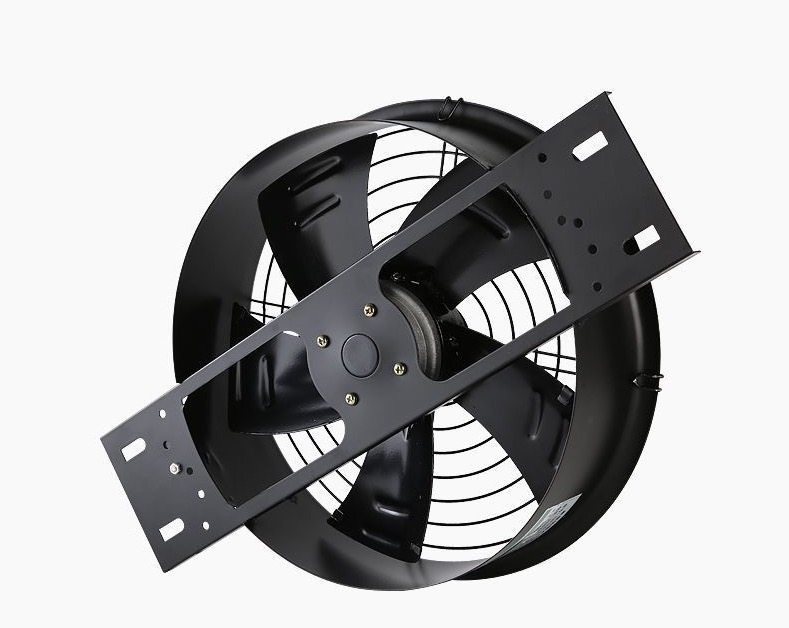

Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|---|---|---|
| YNF-200 | 37.5 | 10 | 24.5 | 39 | 26 | 54.5 | 5 |
| YNF-250 | 42.5 | 10 | 30 | 44 | 31.5 | 54.5 | 5 |
| YNF-300 | 47.5 | 11.5 | 35.5 | 49 | 37 | 62 | 5 |
| YNF-250 | 52.5 | 13 | 39.5 | 54 | 41 | 29 | 2 |
| YNF-400 | 57.5 | 14 | 44.5 | 59 | 46 | 31 | 2 |
