Flip-Cover Exhaust Fans, Metal Exhaust Fans
Stepless Speed Regulation Exhaust Fan with Flip Cover

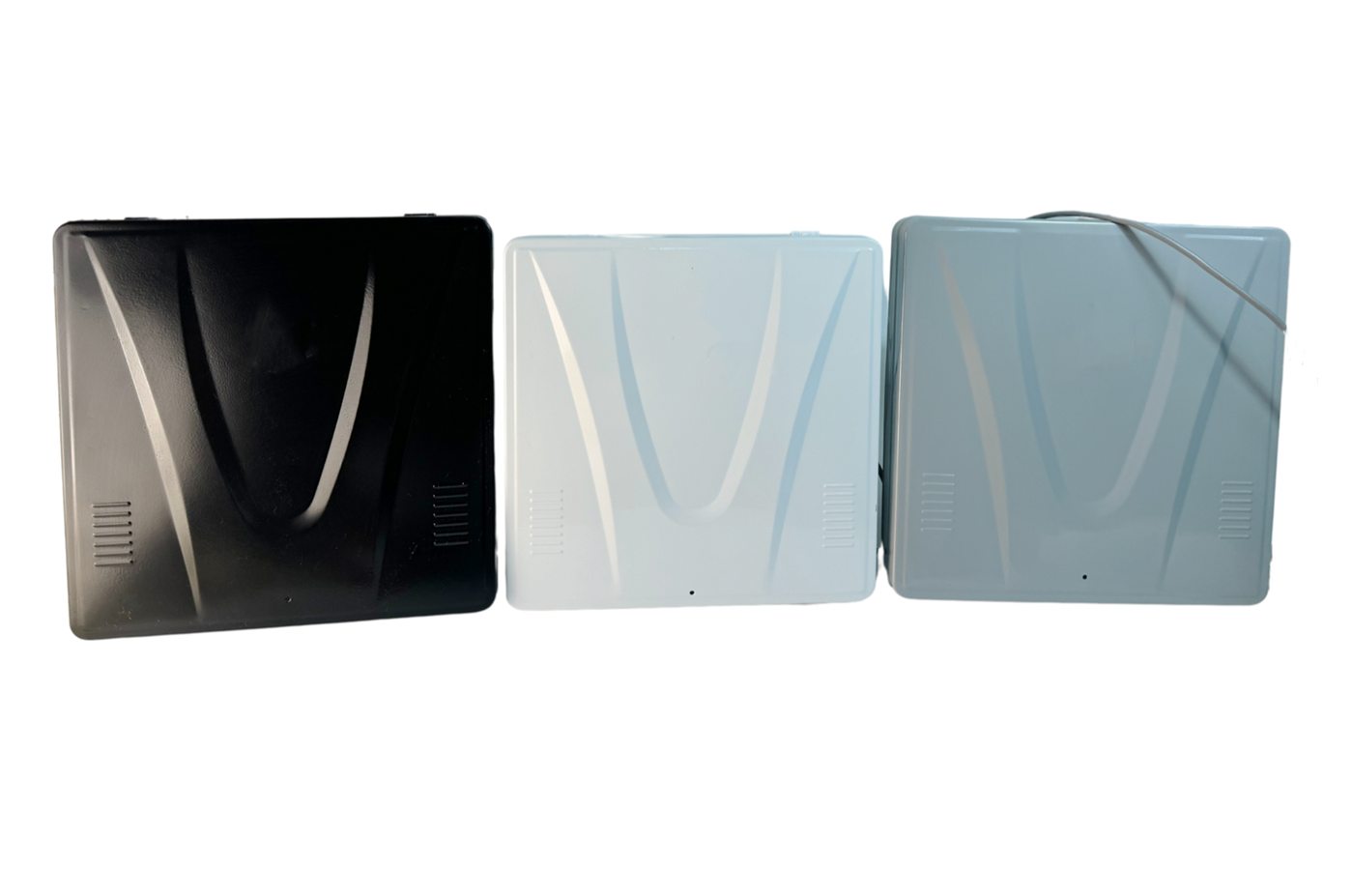

GY-250 with insect-proof flip cover and stepless speed regulation. Full-metal mesh version or semi-metal retractable-blade version, 2100 m3/h. 3 standard colors available:black, white and grey.
Product Overview

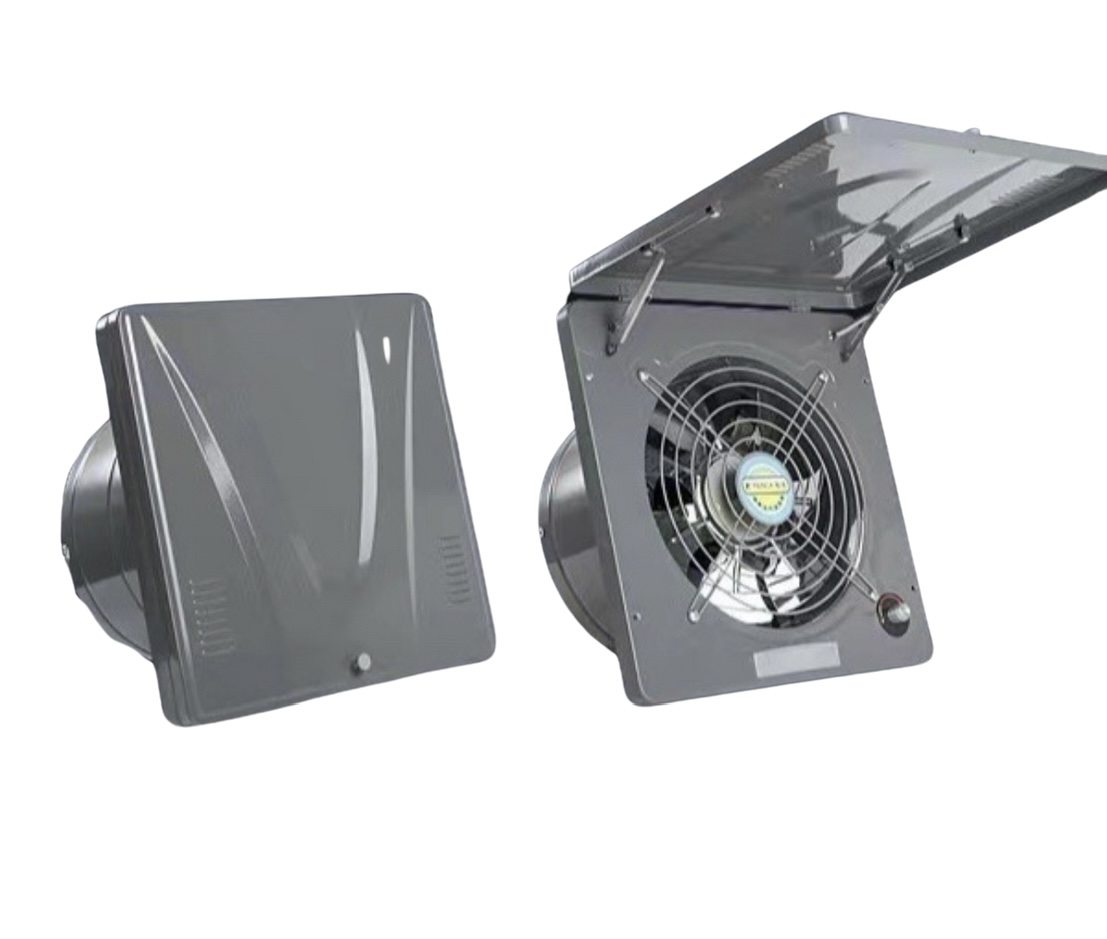

GY-250 with insect-proof flip cover and stepless speed regulation. Full-metal mesh version or semi-metal retractable-blade version, 2100 m3/h.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
| Name | Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | RPM (r/min) | Noise (dB) | Air volume (m3/h) | Panel size (mm) | Hole size (mm) | Height (mm) | screw hole distance (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stepless Speed Regulation Exhaust Fan with Flip Cover(mesh cover) | GY-250 | 50 | 220 | 100 | 2800 | ≤69 | 2100 | 340×340 | 245 | 155 | 317×200 |
| Stepless Speed Regulation Exhaust Fan with Flip Cover(retractable fan blade) | GY-250 | 50 | 220 | 100 | 2800 | ≤69 | 2100 | 340×340 | 245 | 155 | 317×200 |

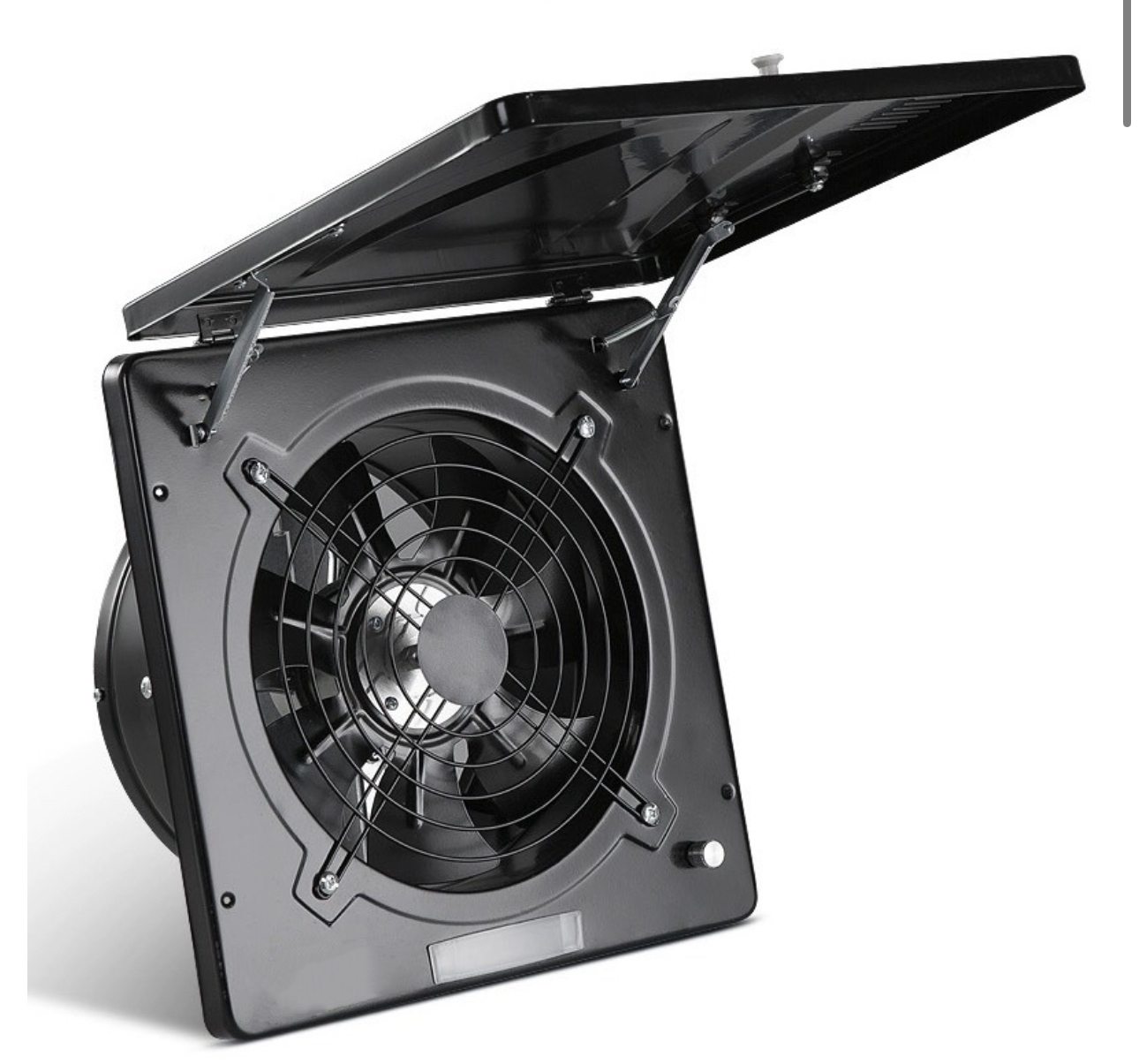

Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|---|---|---|
| 250 | 35.5 | 18 | 36 | 79 | 35 | 36 | 4 |
| 250 | / | / | / | 54 | 35 | 35 | 2 |
