Pipeline-Style Ceiling Exhaust Fan
GY10B to BPT-60B, 150-1800 m3/h. Ceiling-mounted extraction straight into ductwork.
Product Overview
GY10B to BPT-60B, 150-1800 m3/h. Ceiling-mounted extraction straight into ductwork.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
Pipeline-style exhaust fan
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | Noise (dB) | Air volume (m3/h) | Panel size (mm) | Hole size (mm) |
|---|---|---|---|---|---|---|---|
| GY10B | 50 | 220 | 30 | ≤40 | 150 | 200×200 | 160*160 |
| GY12B | 50 | 220 | 38 | ≤40 | 270 | 250×250 | 200*200 |
| GY16B | 50 | 220 | 38 | ≤40 | 312 | 270×270 | 230*230 |
| GY17B | 50 | 220 | 38 | ≤40 | 312 | 310×310 | 250*250 |
| GY18B | 50 | 220 | 38 | ≤40 | 432 | 320×320 | 280*280 |
| GY28B | 50 | 220 | 38 | ≤40 | 432 | 340×340 | 300*300 |
| GY38B | 50 | 220 | 55 | ≤40 | 720 | 390×390 | 340*340 |
| BPT-60B | 50 | 220 | 160 | ≤40 | 1800 | 600×600 | 480*480 |

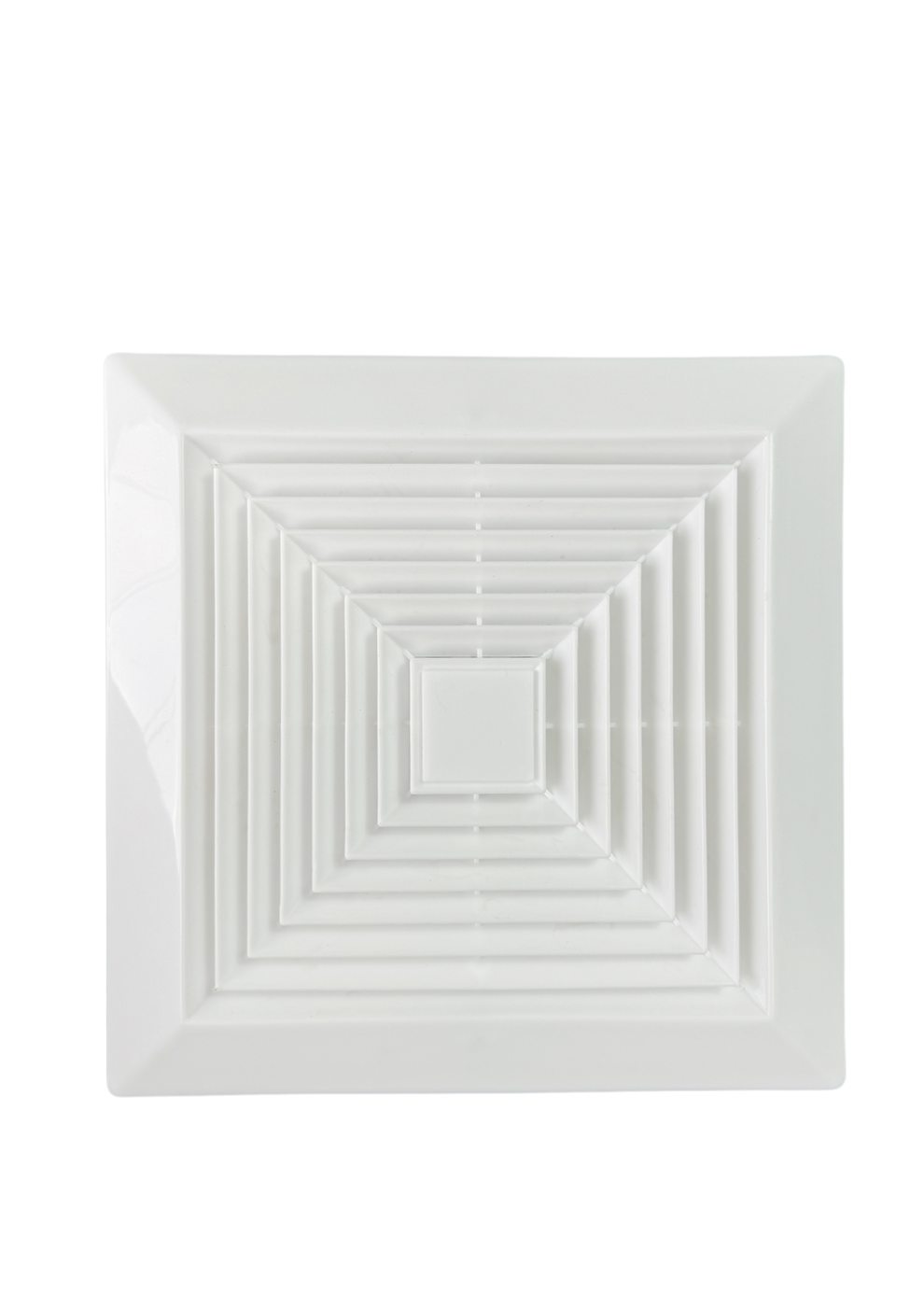

Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton | |
|---|---|---|---|---|---|---|---|---|
| Pipeline-Style | GY10B | 200 | 118 | 203 | 630 | 420 | 430 | 20 |
| GY12B | 243 | 181 | 243 | 855 | 260 | 510 | 10 | |
| GY16B | 270 | 173 | 270 | 720 | 280 | 560 | 8 | |
| GY17B | 313 | 172 | 315 | 720 | 325 | 640 | 8 | |
| GY18B | 338 | 180 | 340 | 760 | 355 | 705 | 8 | |
| GY28B | 338 | 180 | 340 | 760 | 355 | 705 | 8 | |
| GY38B | 405 | 220 | 405 | 690 | 420 | 825 | 6 | |
| BPT-60B | / | / | / | 660 | 270 | 660 | 1 |
