Plastic Exhaust Fans, Square Wall Fans (Pull-Cord)
Plastic Vent Fan (Pull-Cord / Plug-In)
GY100 to GY200, only 20 W, 86-126 m3/h, whisper-quiet PP housing for bathrooms and kitchens.
Product Overview
GY100 to GY200, only 20 W, 86-126 m3/h, whisper-quiet PP housing for bathrooms and kitchens.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
Plastic Vent fans
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | Noise (dB) | Air volume (m3/h) | Panel size (mm) | Hole size (mm) |
|---|---|---|---|---|---|---|---|
| GY100 | 50 | 220 | 20 | ≤40 | 86 | 155*155 | 103 |
| GY150 | 50 | 220 | 20 | ≤40 | 108 | 200*200 | 145 |
| GY200 | 50 | 220 | 20 | ≤40 | 126 | 240*240 | 180 |
Product Details

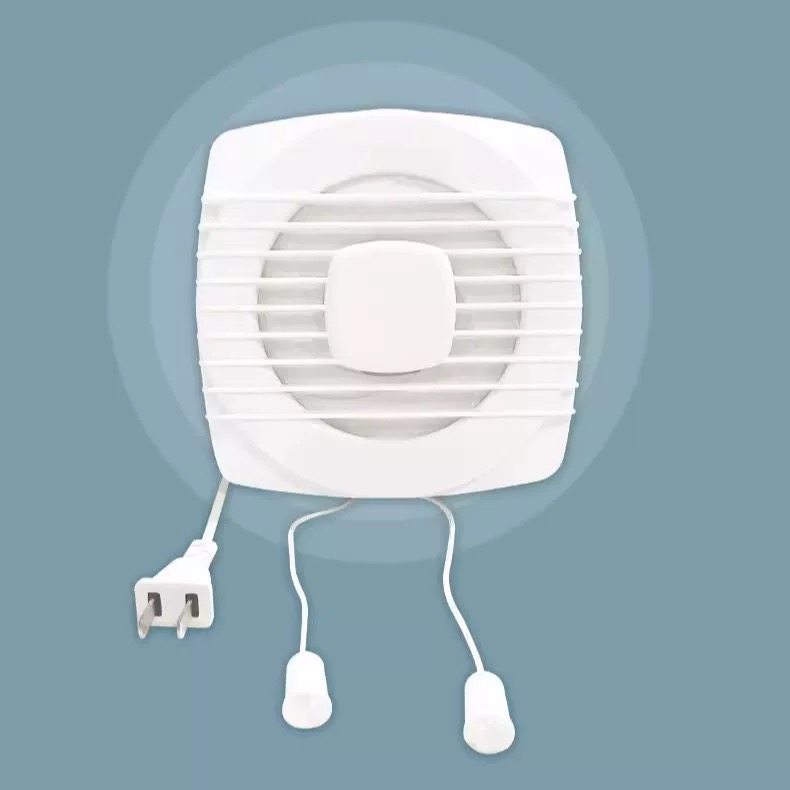

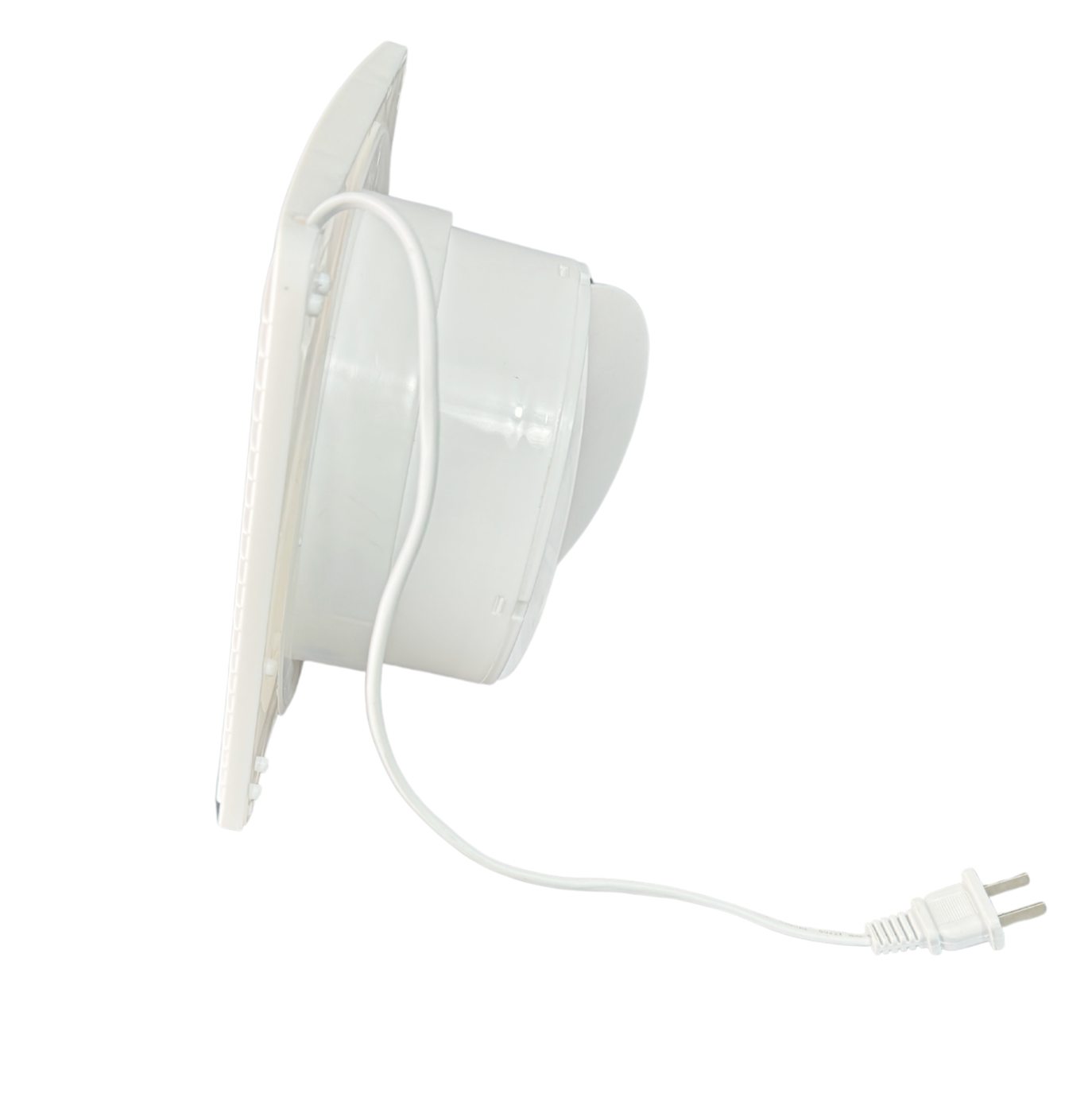

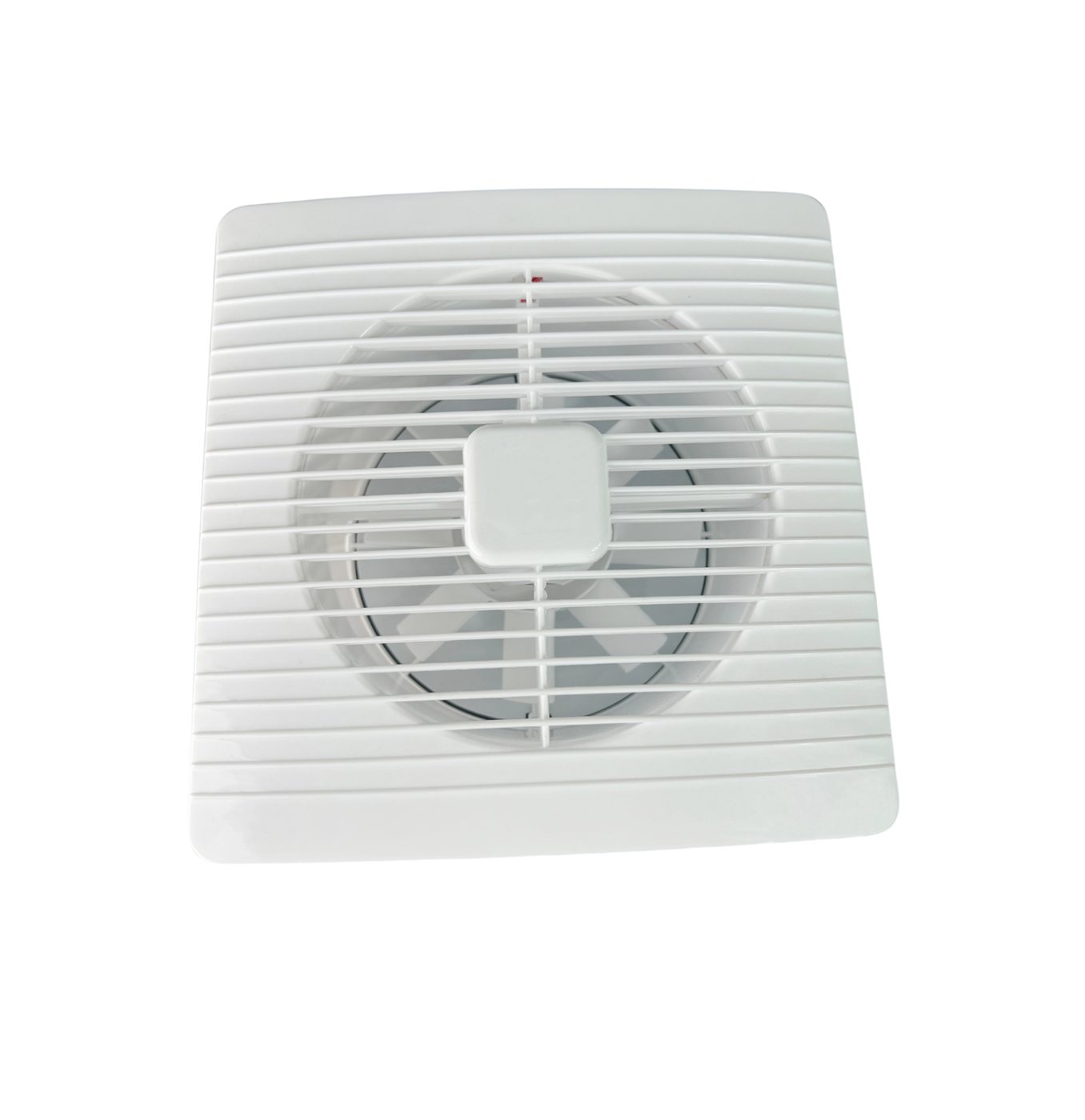

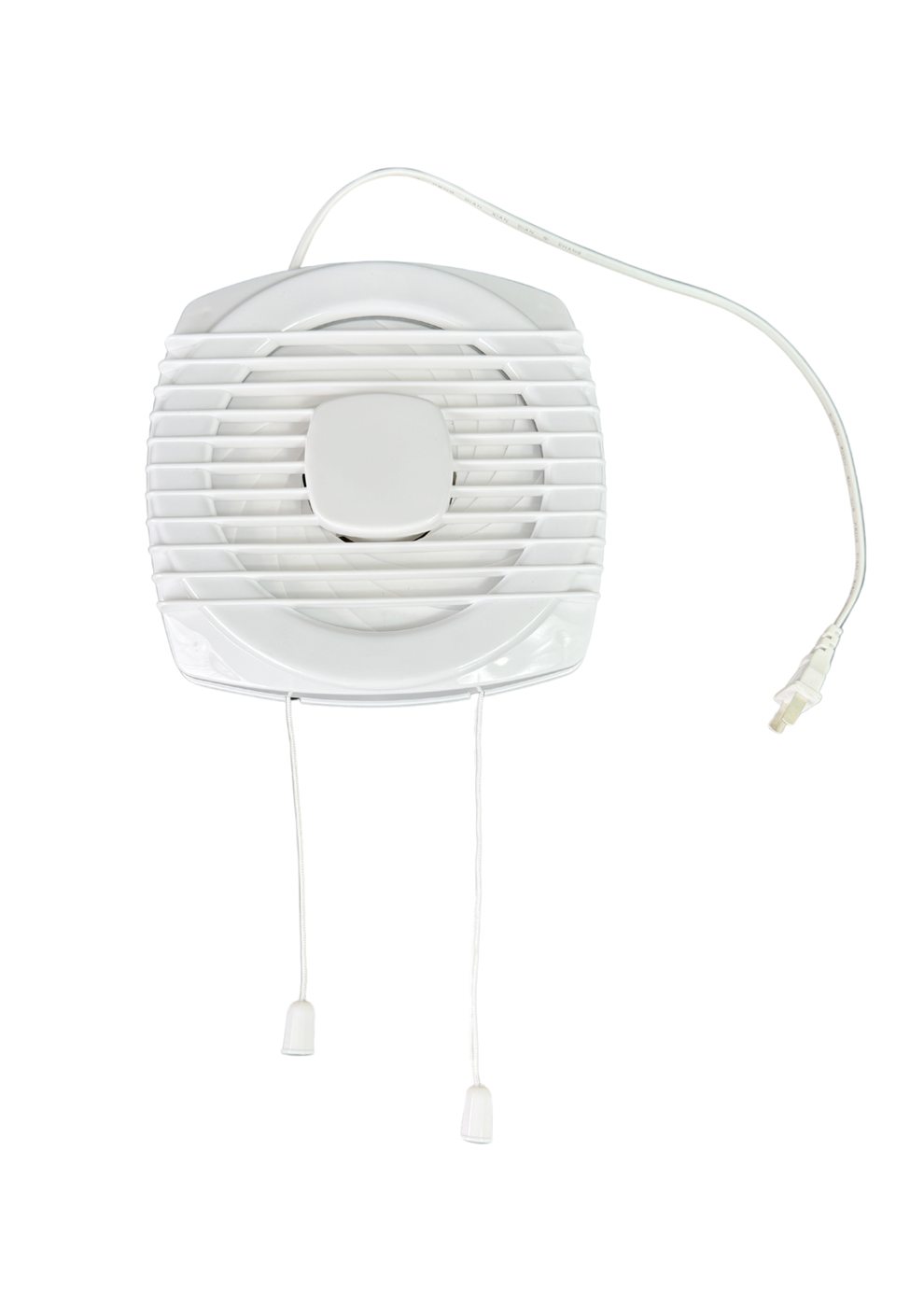

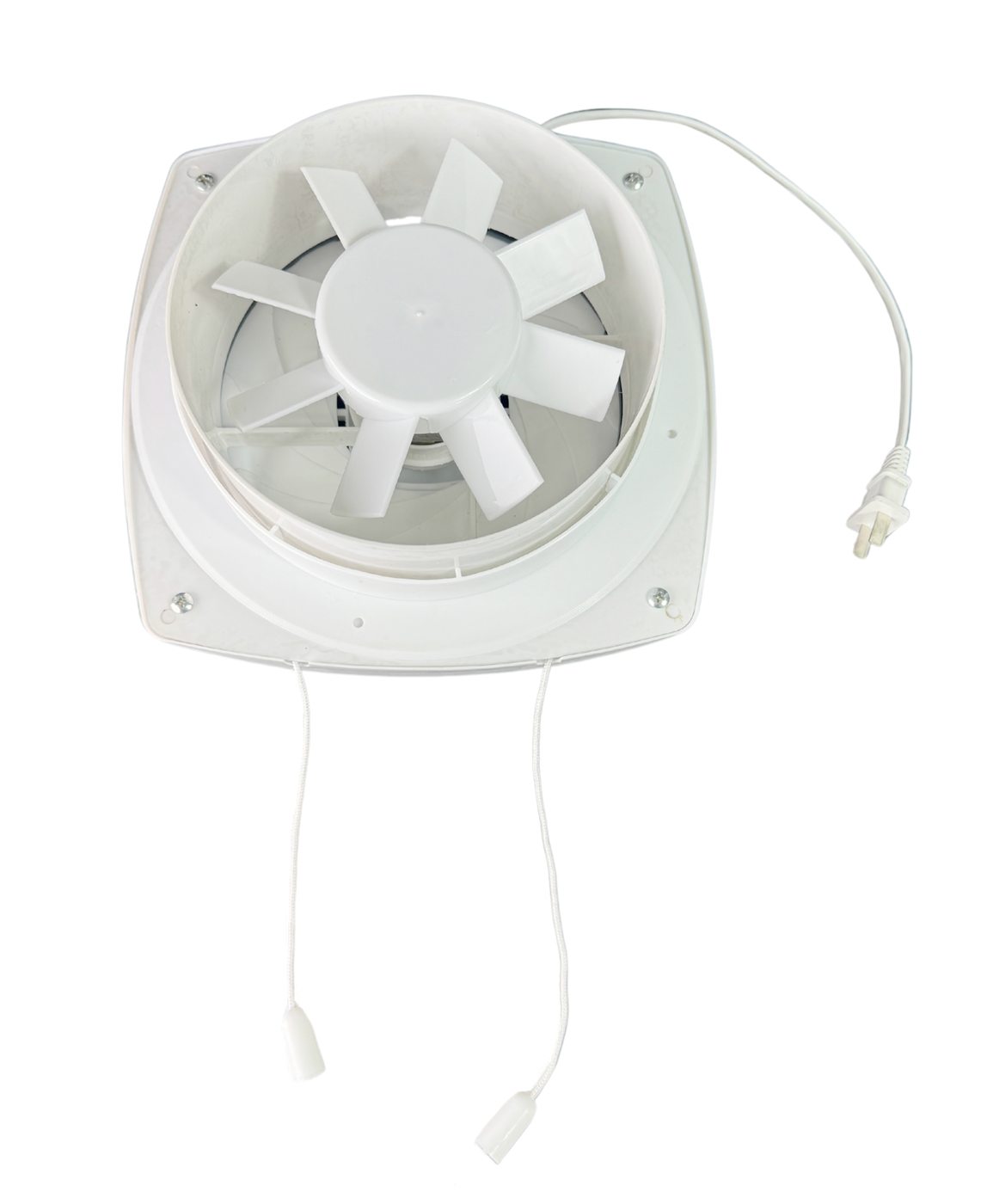

Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|---|---|---|
| GY100 | 160 | 85 | 160 | 445 | 340 | 505 | 30 |
| GY150 | 205 | 90 | 205 | 480 | 430 | 420 | 20 |
| GY200 | 250 | 110 | 250 | 575 | 510 | 520 | 20 |
