Plastic Exhaust Fans, Square Wall Exhaust Fans

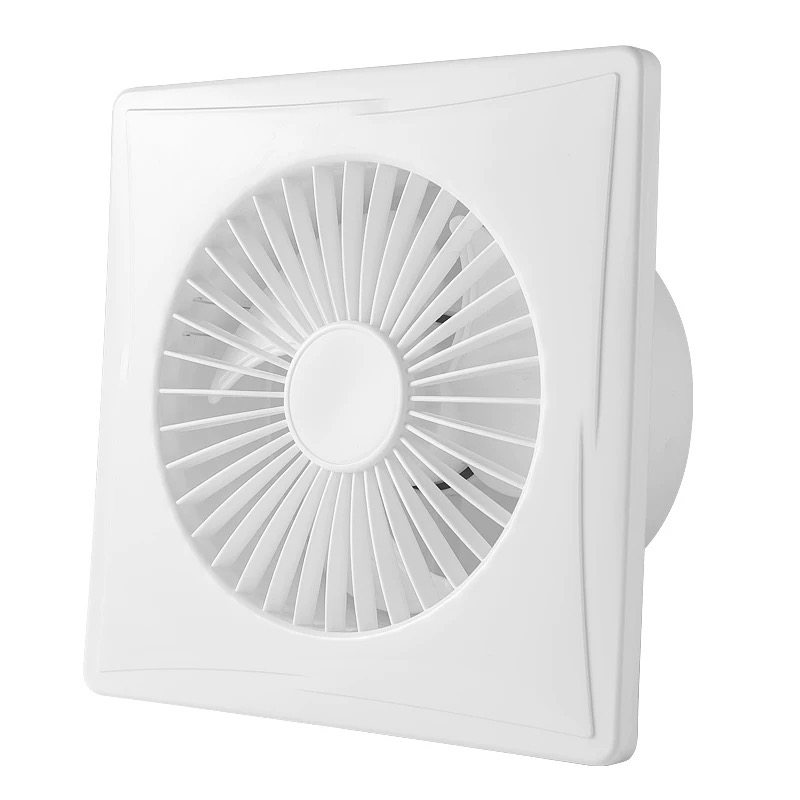

Plastic Wall-Mounted Exhaust Fan
KAS 4, 6, and 7 inch square panel with round duct connection, 86-200 m3/h, corrosion-proof PP.
Product Overview
KAS 4, 6, and 7 inch square panel with round duct connection, 86-200 m3/h, corrosion-proof PP.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
| Model | Size | Frequency (Hz) | Rated voltage (V) | Watt (w) | Air volume (m3/h) | Hole size (mm) | Panel size (mm) | screw hole distance (mm) |
|---|---|---|---|---|---|---|---|---|
| KAS-100 | 4inch | 50 | 220 | 15 | 86 | 100 | 147*147 | 126*126 |
| KAS-150 | 6inch | 20 | 126 | 150 | 193*193 | 175*175 | ||
| KAS-180 | 7inch | 25 | 200 | 180 | 250*250 | 220*220 |
Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|---|---|---|
| KAS-10 | 16 | 10 | 16 | 52 | 34.5 | 50 | 30 |
| KAS-15 | 20.4 | 12 | 20.4 | 63 | 43 | 44 | 20 |
| KAS-180 | 25.5 | 12.5 | 25.5 | 65 | 27 | 54 | 10 |
