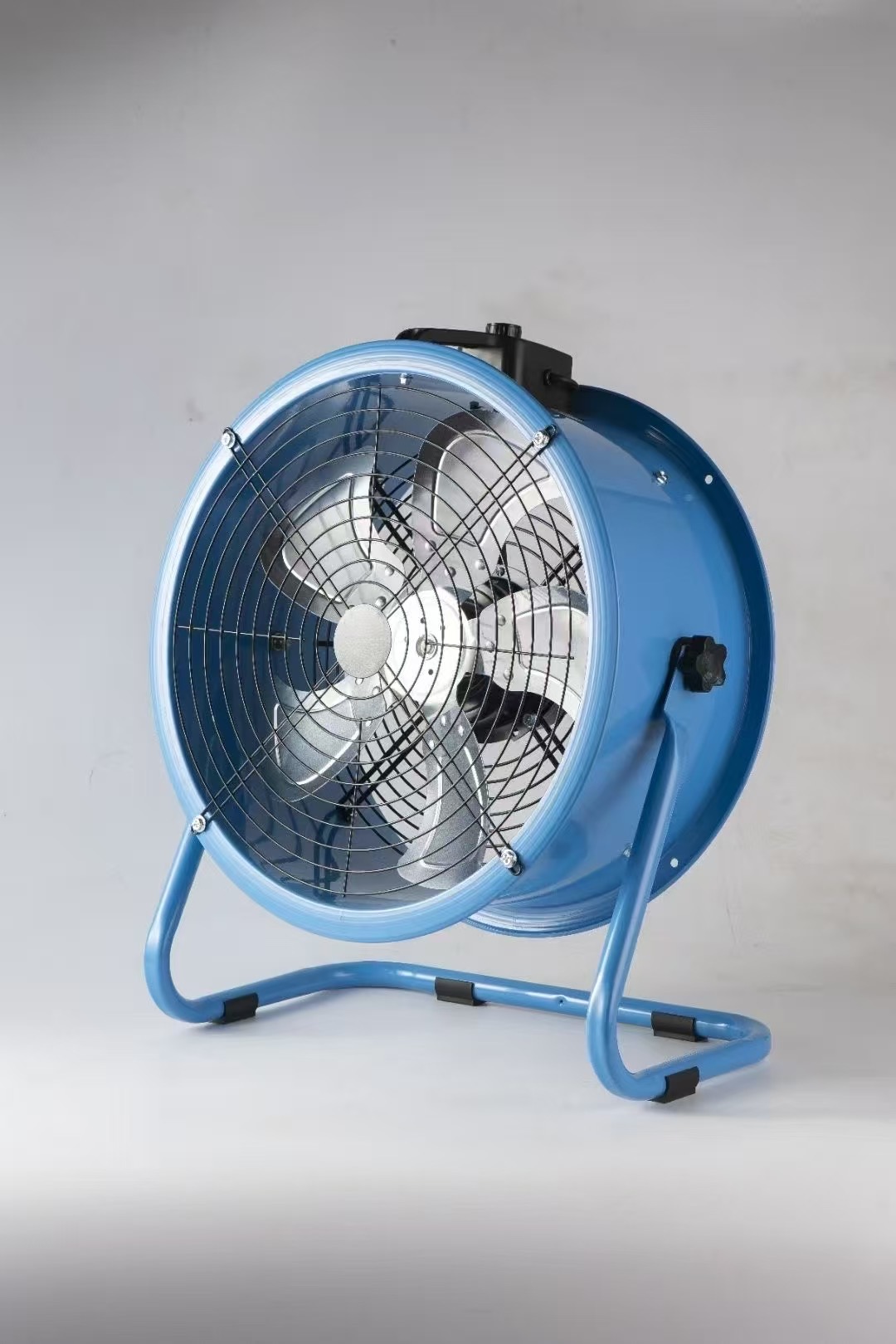

Portable Fan (5 Aluminum Fan Blades)

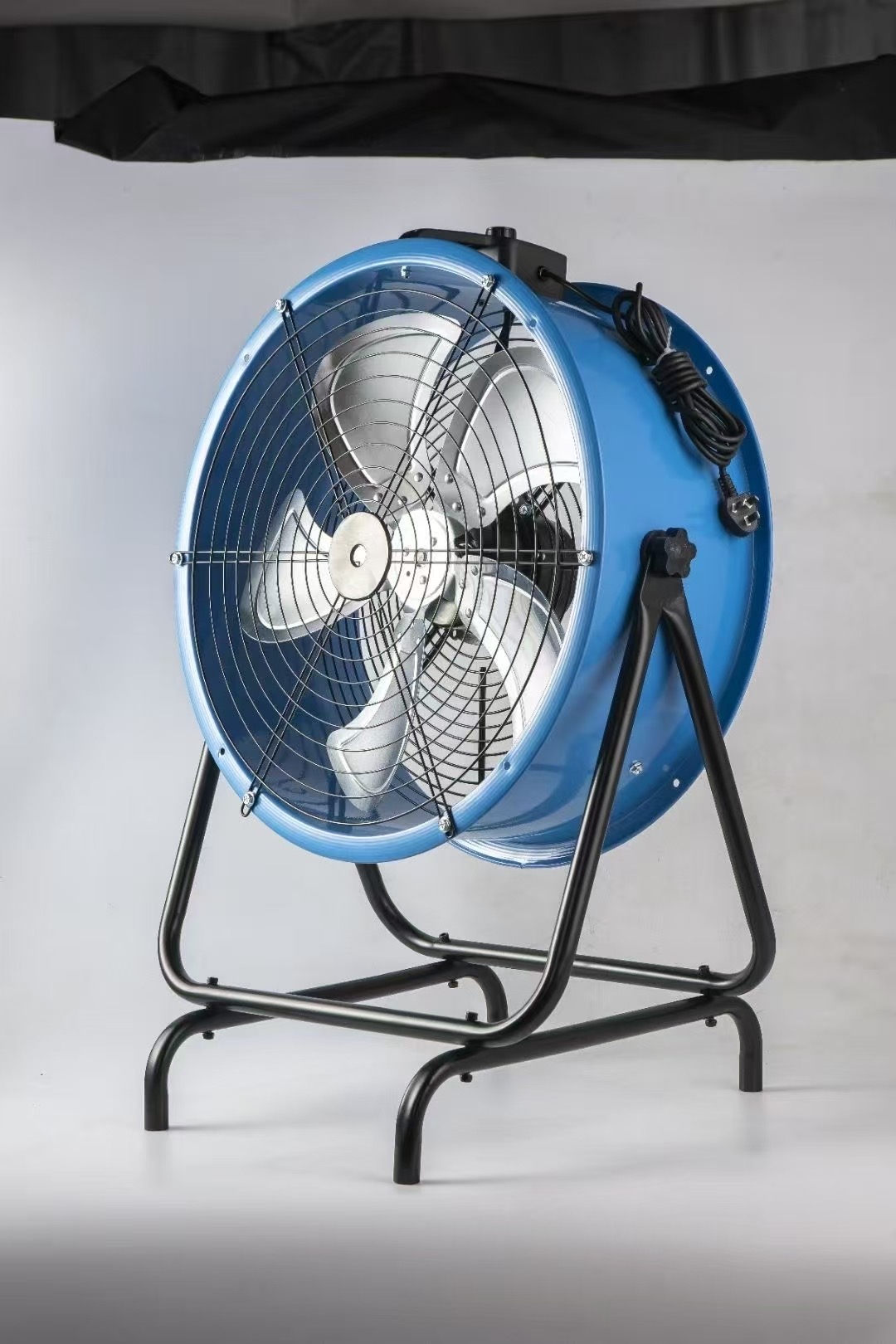

Large-angle 5-aluminum-blades , 500-600 mm, 2700-3200 m3/h. Ground-mount model 250-400, post-mounted model 500/600.
Product Overview
Large-angle 4-blade stainless impeller, 250-600 mm, 2100-8000 m3/h. Ground-mount 250-400, fixed stand 500/600, forward blowing.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
Orange Portable Fan
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | RPM (r/min) | Noise (dB) | Air volume (m3/h) | inner diameter (mm) | Height (mm) | External diameter (mm) | Total Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 250 | 50 | 220 | 70 | 2300 | ≤69 | 1280 | 160 | 240 | 305 | 390 |
| 300 | 50 | 220 | 140 | 2300 | ≤69 | 1300 | 310 | 240 | 355 | 460 |
| 350 | 50 | 220 | 80 | 1400 | ≤69 | 1100 | 360 | 240 | 405 | 470 |
| 400 | 50 | 220 | 100 | 1380 | ≤69 | 1500 | 410 | 240 | 458 | 508 |
| 500(post-mounted) | 50 | 220 | 220 | 1380 | ≤69 | 2700 | 510 | 240 | 560 | 830 |
| 600(post-mounted) | 50 | 220 | 260 | 1380 | ≤69 | 3200 | 610 | 240 | 660 | 1020 |
Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton |
|---|---|---|---|---|
| 250 | 35 | 33 | 34 | 1 |
| 300 | 38 | 40 | 33 | 1 |
| 350 | 44 | 44 | 28 | 1 |
| 400 | 51 | 51 | 30 | 1 |
| 500 | 58 | 58 | 27 | 1 |
| 600 | 68 | 68 | 27 | 1 |
