Ultra-Quiet Mixed Flow Duct Fan
BXF-100 to BXF-200, 290-1200 m3/h, noise from 50 dB, IPX65. For hotels, hospitals, studios, and noise-sensitive rooms.
Product Overview
BXF-100 to BXF-200, 290-1200 m3/h, noise from 50 dB, IPX65. For hotels, hospitals, studios, and noise-sensitive rooms.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | Pa | RPM (r/min) | Noise (dB) | Air volume (m3/h) | A |
|---|---|---|---|---|---|---|---|---|

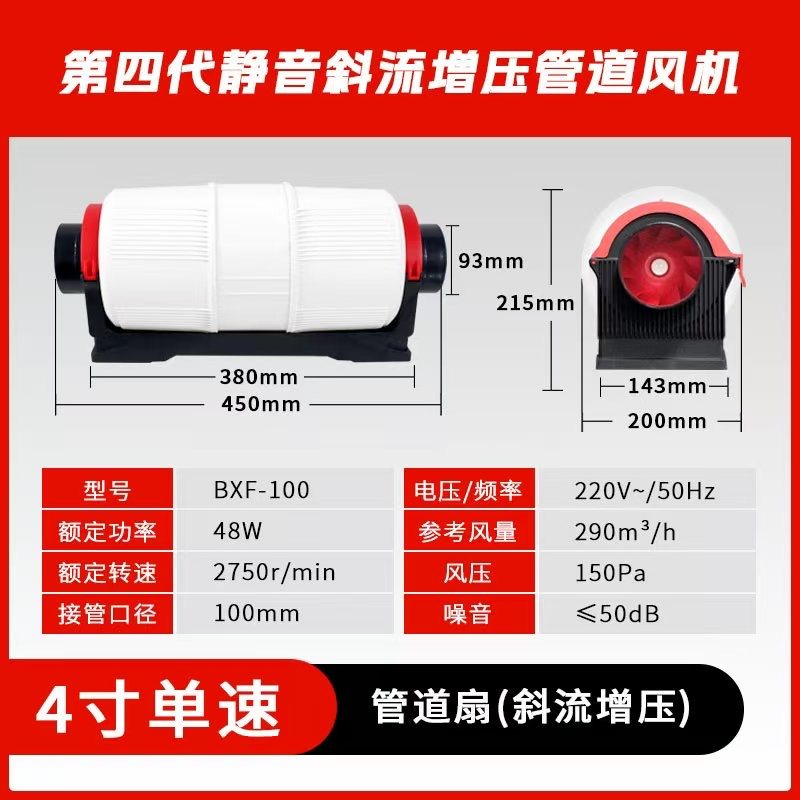

| BXF-100 | 50 | 220 | 48 | 150 | 2750 | ≤50 | 290 | |
| Dual BXF-100 | 50 | 220 | 42/48 | 125/150 | 2450/2750 | ≤50 | 280/330 | |

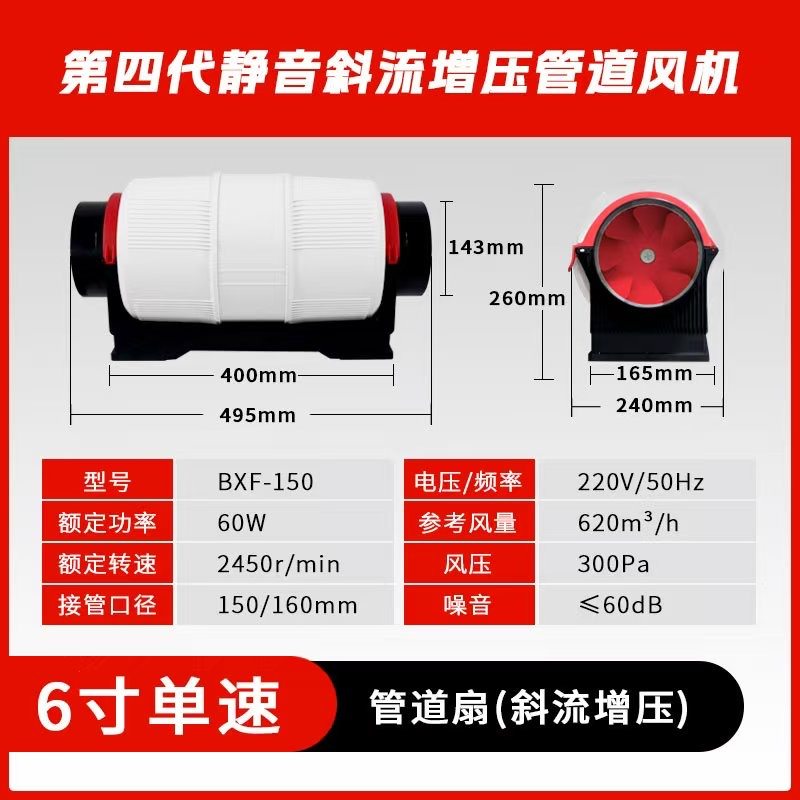

| BXF-150 | 50 | 220 | 60 | 300 | 2450 | ≤60 | 620 | |
| Dual BXF-150 | 50 | 220 | 50/60 | 250/300 | 2000/2450 | ≤60 | 480/600 | |

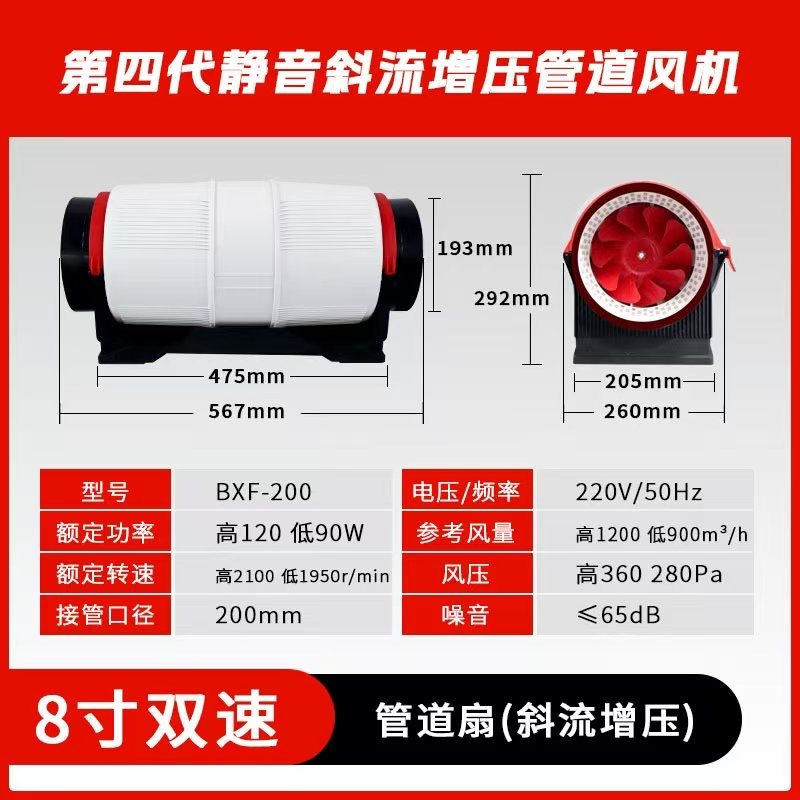

| BXF-200 | 50 | 220 | 120 | 350 | 2100 | ≤65 | 1120 | |
| Dual BXF-200 | 50 | 220 | 90/120 | 280/360 | 1950/2100 | ≤65 | 900/1200 | |
| ABCD,3 |

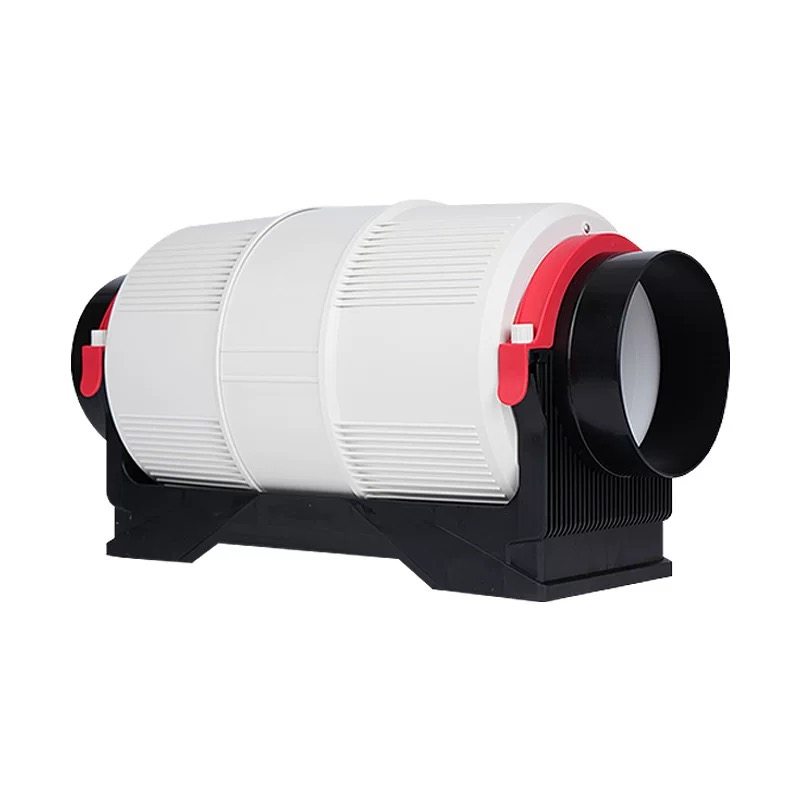

Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Outer L (cm) | Outer W (cm) | Unit/Carton | |
|---|---|---|---|---|
| Mixed Flow | 100 | 48 | 22 | 1 |
| 150 | 52 | 24.5 | 1 | |
| 200 | 60 | 27 | 1 |
