Metal Exhaust Fans, Portable Fans

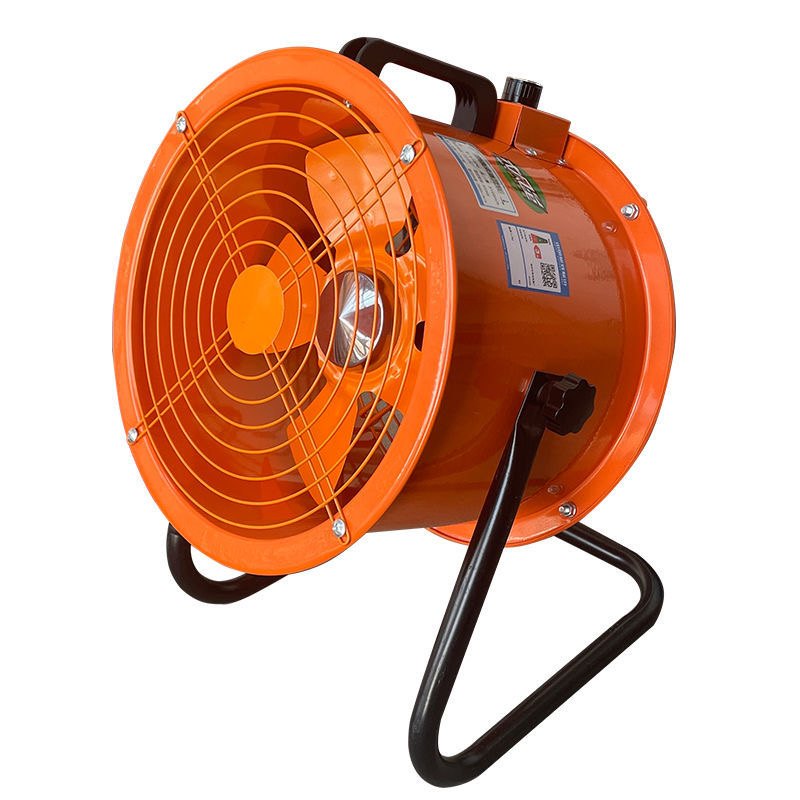

Variable-Speed Portable Fan
Handle-carried 5-blade series 200-400 mm, 1300-7500 m3/h, forward blowing with stepless speed regulation.
Product Overview
Handle-carried 5-blade series 200-400 mm, 1300-7500 m3/h, forward blowing with stepless speed regulation.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
Variable-speed Portable Fan
| Model | Frequency (Hz) | Rated voltage (V) | Watt (W) | RPM (r/min) | Noise (dB) | Air volume (m3/h) | inner diameter (mm) | Height (mm) | External diameter (mm) | Total Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 200 | 50 | 220 | 80 | 2800 | ≤69 | 1300 | 210 | 240 | 253 | 350 |
| 250 | 50 | 220 | 100 | 2800 | ≤69 | 2100 | 160 | 240 | 305 | 390 |
| 300 | 50 | 220 | 120 | 2800 | ≤69 | 3000 | 310 | 240 | 355 | 460 |
| 350 | 50 | 220 | 280 | 2800 | ≤69 | 5500 | 360 | 240 | 405 | 470 |
| 400 | 50 | 220 | 320 | 2800 | ≤69 | 7500 | 410 | 240 | 458 | 508 |
| ABCD |
Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton | |
|---|---|---|---|---|---|
| Orange Portable Fan | 200 | 32 | 32 | 33 | 1 |
| 250 | 35 | 33 | 34 | 1 | |
| 300 | 38 | 40 | 33 | 1 | |
| 350 | 44 | 44 | 28 | 1 | |
| 400 | 51 | 51 | 30 | 1 |
