Plastic Exhaust Fans, Round Wall-Mounted Fans

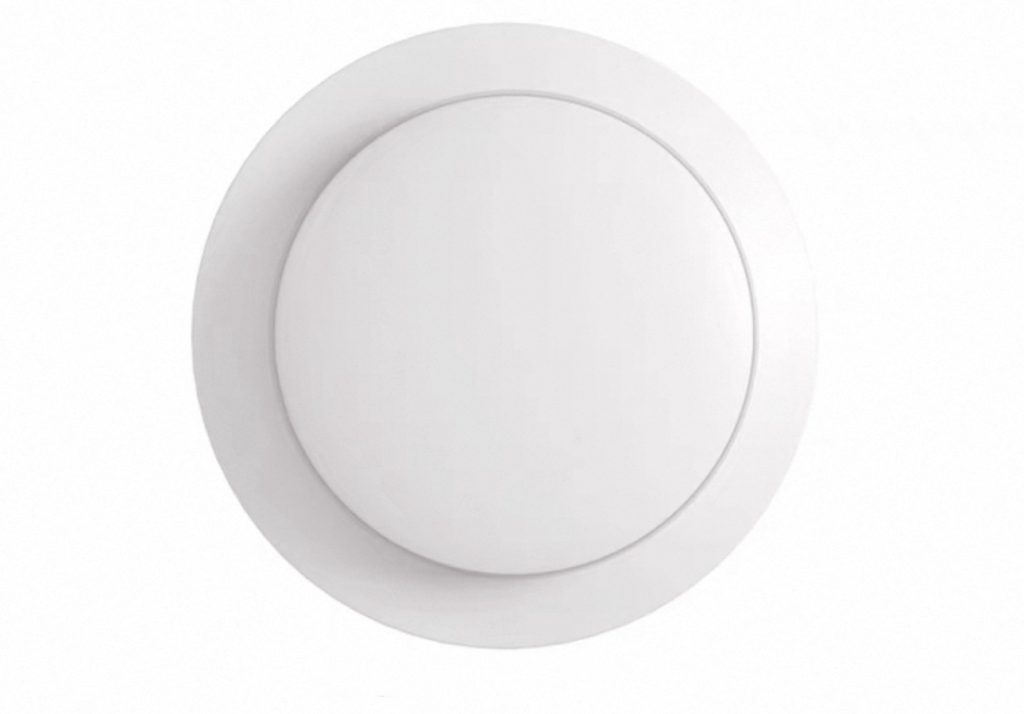

Wall-Mounted Exhaust Fan (Round)
KHG 4, 6, and 8 inch. One-way versions with damper options plus a two-way remote-control version, for bathrooms and garages.
Product Overview
KHG 4, 6, and 8 inch. One-way versions with damper options plus a two-way remote-control version, for bathrooms and garages.
The standard model data is listed below. Please contact us for voltage, plug, color, label, carton, and OEM configuration options for your market.
Technical Specifications
Wall-mounted Exhaust Fan
| Model | Size | Frequency (Hz) | Rated voltage (V) | Watt (w) | Air volume (m3/min) | Hole size (mm) | Panel size | Height of Straight duct | Height of panel and straight duct |
|---|---|---|---|---|---|---|---|---|---|
| KHG-10 | 4inch | 50 | 220 | 15 | 2.5 | 97 | 153 | 95 | 120 |
| KHG-15 | 6inch | 50 | 220 | 20 | 4.5 | 145 | 200 | 120 | 165 |
| KHG-20 | 8inch | 50 | 220 | 40 | 7.8 | 200 | 250 | 130 | 170 |
| KHG-10 | 4inch | 50 | 220 | 15 | 2.5 | 150 | 150 | 95 | 110 |
| KHG-15 | 6inch | 50 | 220 | 20 | 4.5 | 200 | 200 | 120 | 135 |
| KHG-20 | 8inch | 50 | 220 | 40 | 7.8 | 250 | 250 | 130 | 150 |

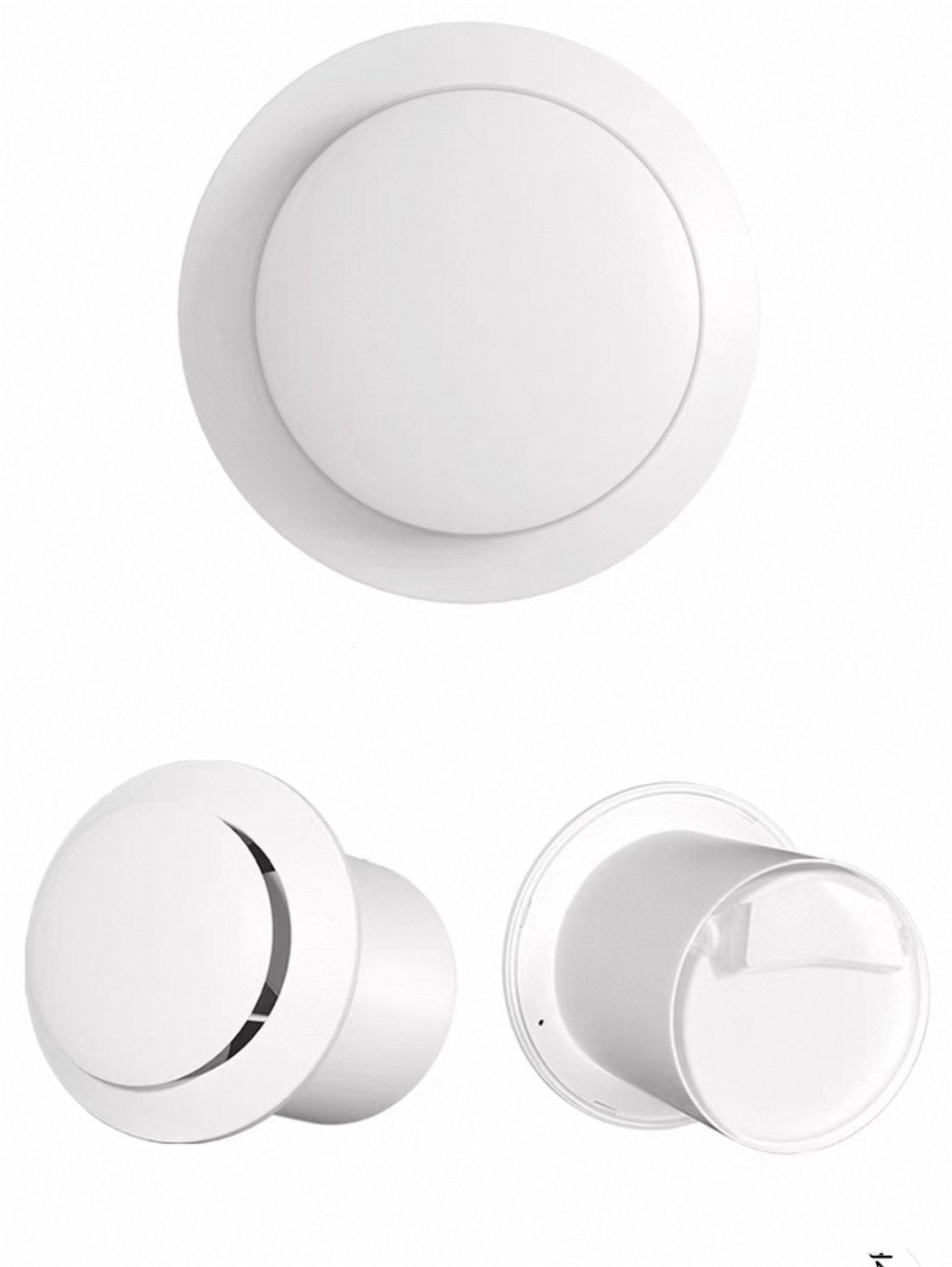

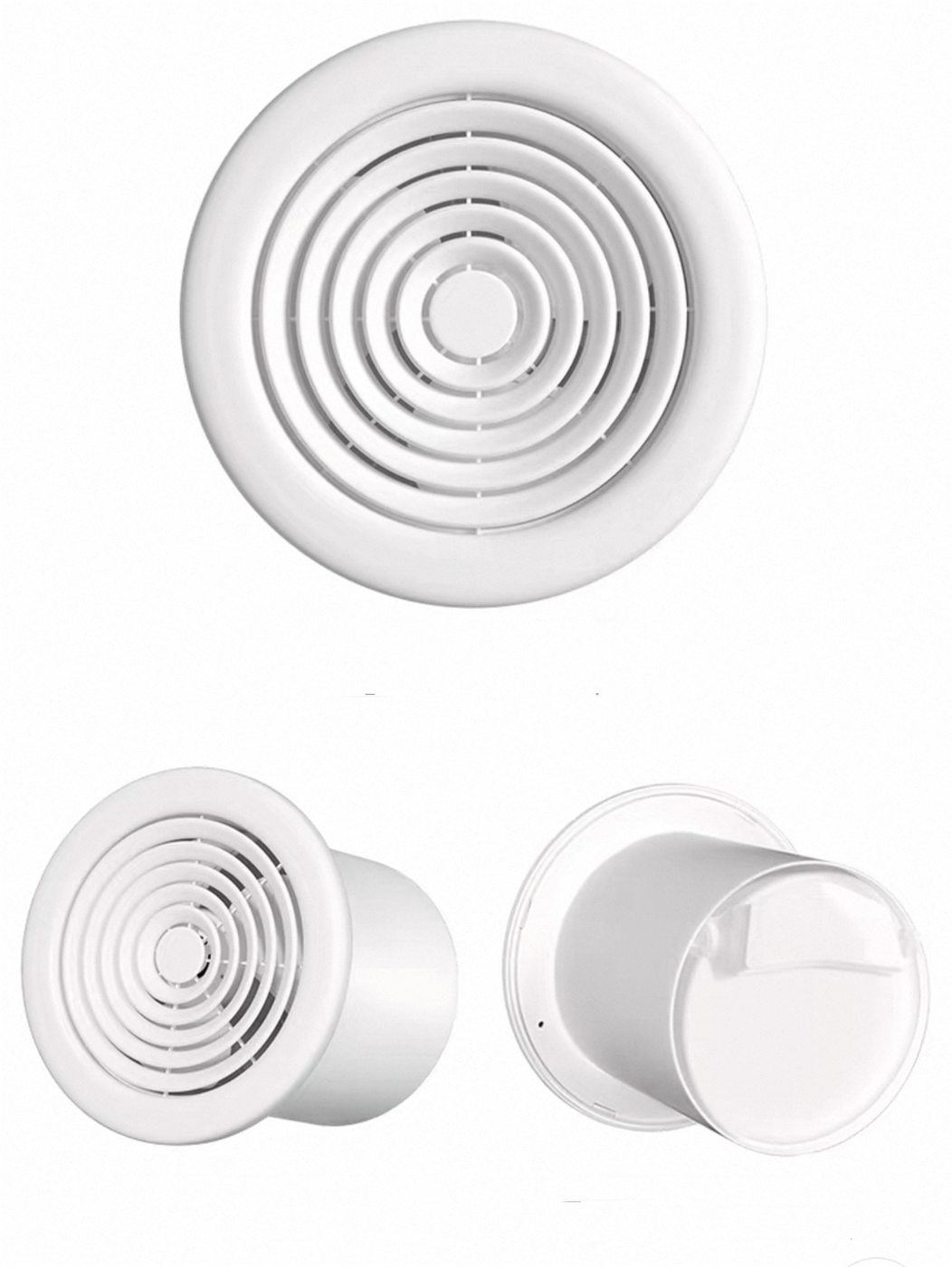

Product Details
Reference views from the product catalog. Contact sales for the current configuration, finish, and packaging options.
Packaging Information
| Model | Inner L (cm) | Inner W (cm) | Inner H (cm) | Outer L (cm) | Outer W (cm) | Outer H (cm) | Unit/Carton | |
|---|---|---|---|---|---|---|---|---|
| Round Wall-Mounted | 10 | 15.3 | 15.3 | 13.6 | 78 | 32.5 | 30 | 20 |
| 15 | 19.3 | 19.3 | 17 | 59.5 | 40.5 | 36.5 | 12 | |
| 20 | 25 | 25 | 16.5 | 52.5 | 52.5 | 36 | 8 |
